X104 - x-rhd-sop9

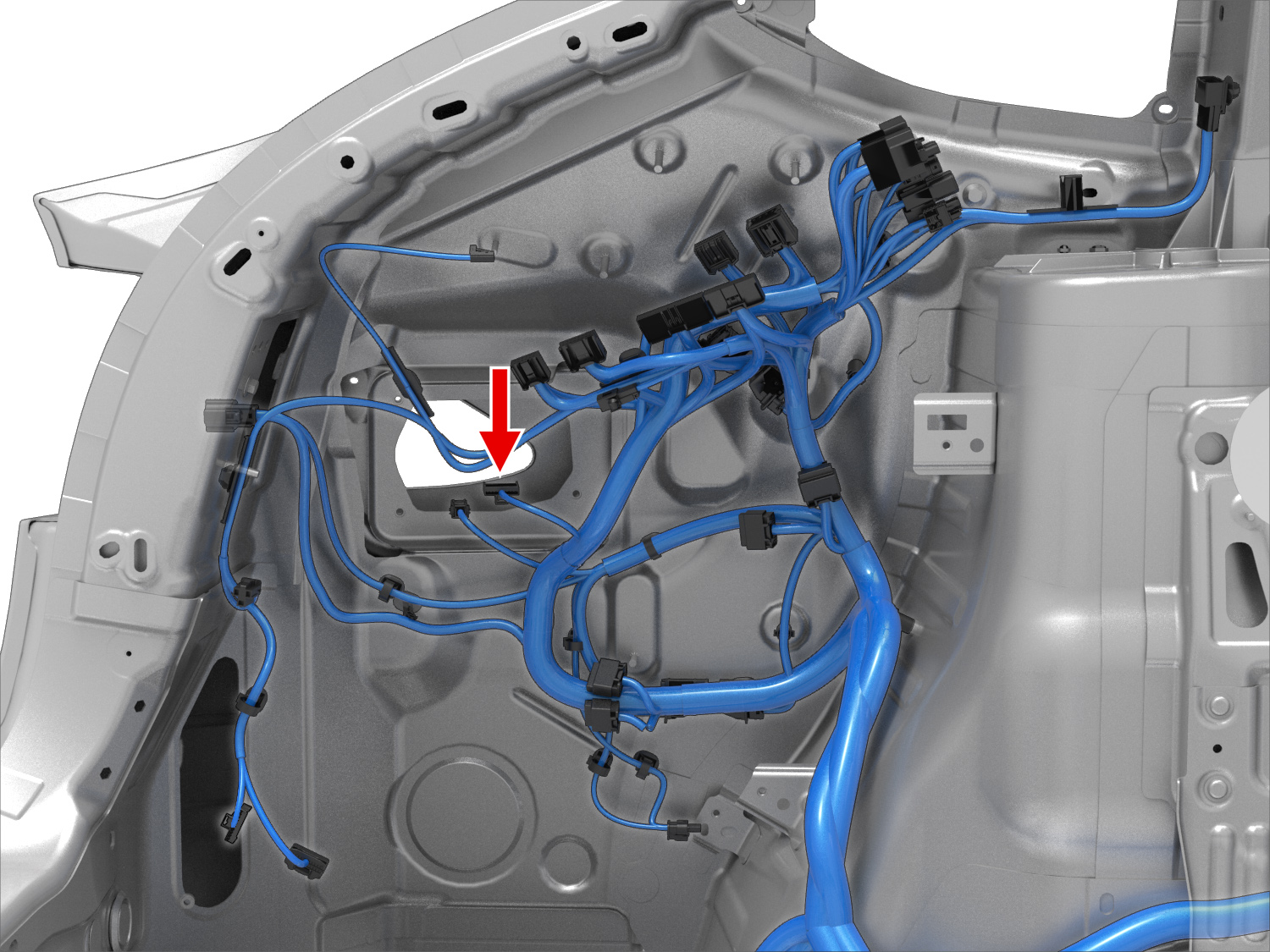

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X706 | 16 | ||
| 8 | AMP | 5-928999-1 | 0.63x0.63F | RD/WH | 0.35 | X706 | 5 | ||
| 9 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | GND_LR | 1 | ||
| 10 | AMP | 5-963715-1 | 0.63x0.63F | RD/BU | 0.50 | X020 | 3 | ||
