X164 - x-rhd-sop9

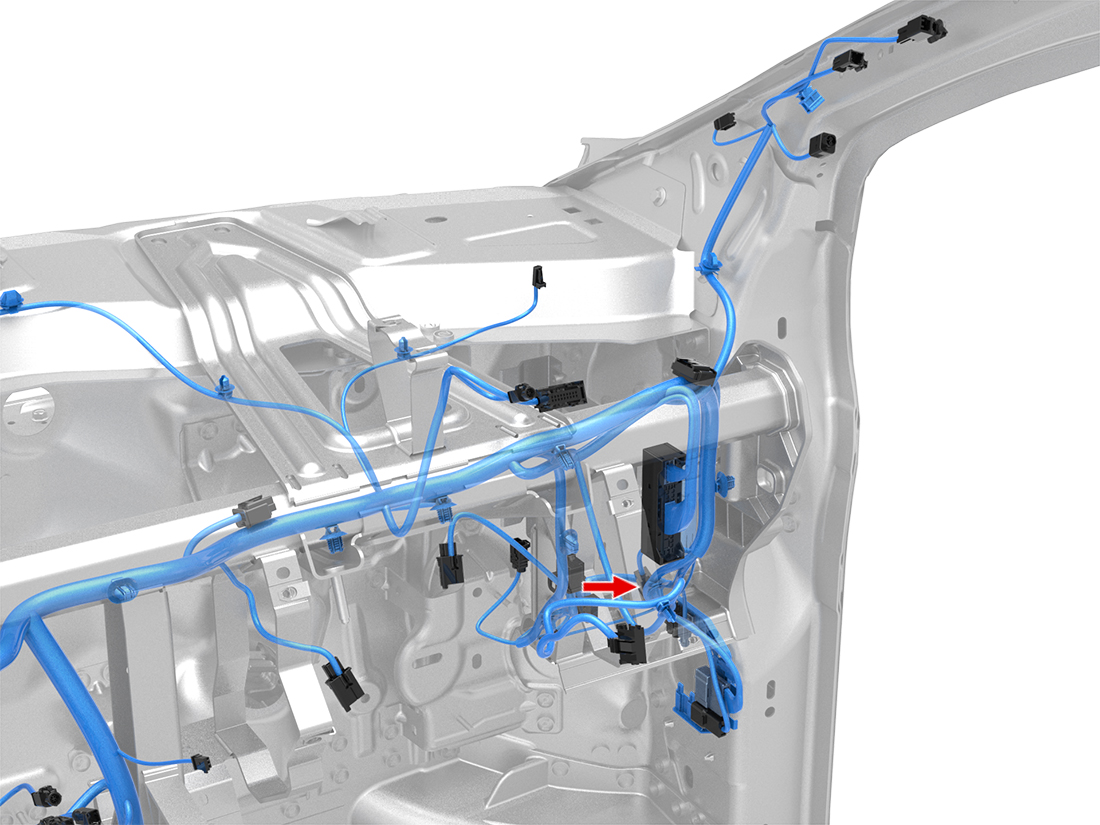

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4502 | 2.3x0.64M | BU | 1.50 | X926F | 9 | ||
| 2 | SUMITOMO | 8230-4502 | 2.3x0.64M | BK | 1.50 | GND_IP_R | 1 | ||
| 3 | SUMITOMO | 8230-4742 | 2.3x0.64M | WH | 0.35 | X063 | 8 | ||
| 4 | SUMITOMO | 8230-4502 | 2.3x0.64M | BN | 1.50 | X915F | 2 |
