X194A - x-rhd-sop9

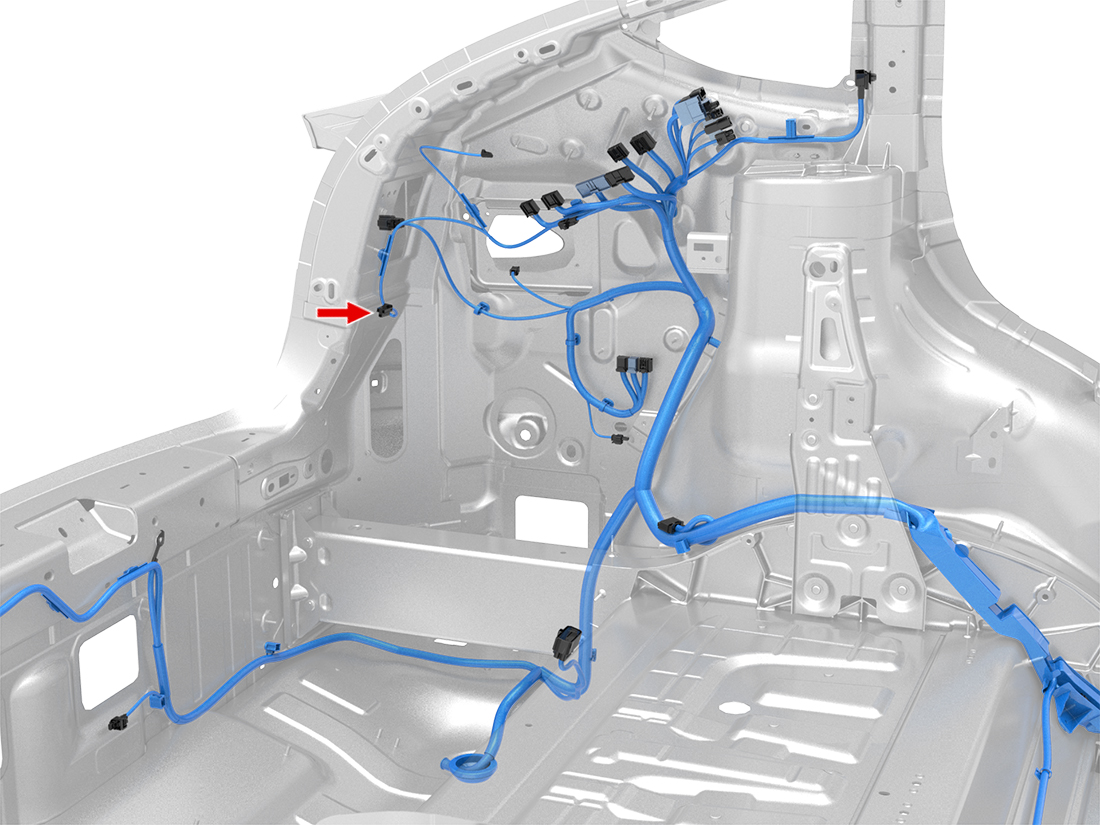

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12110844 | 2.8x0.8F | RD/VT | 1.00 | X021 | 12 | ||
| B | |||||||||
| C | DELPHI | 12110844 | 2.8x0.8F | BK | 1.00 | GND_LR | 1 | ||
