X210 - x-rhd-sop9

Tesla Part Number
1033076-00-A
Connector
YAZAKI 7283-7491-70
Color
YL

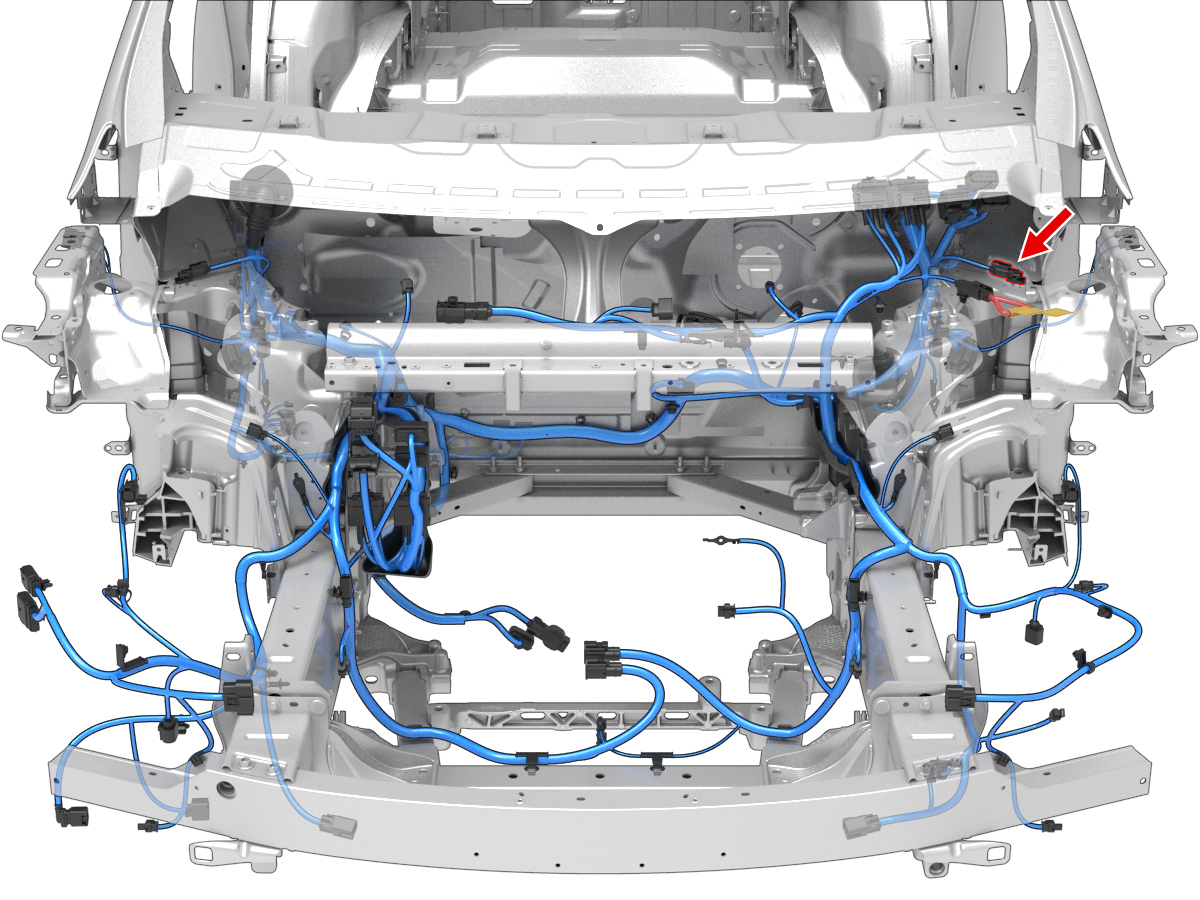

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-4221-081.0x0.64FOG0.50YAZAKI7158-3070-80X914M11
2YAZAKI7116-4221-081.0x0.64FBK0.50YAZAKI7158-3070-80X914M20
