X301 - x-rhd-sop9

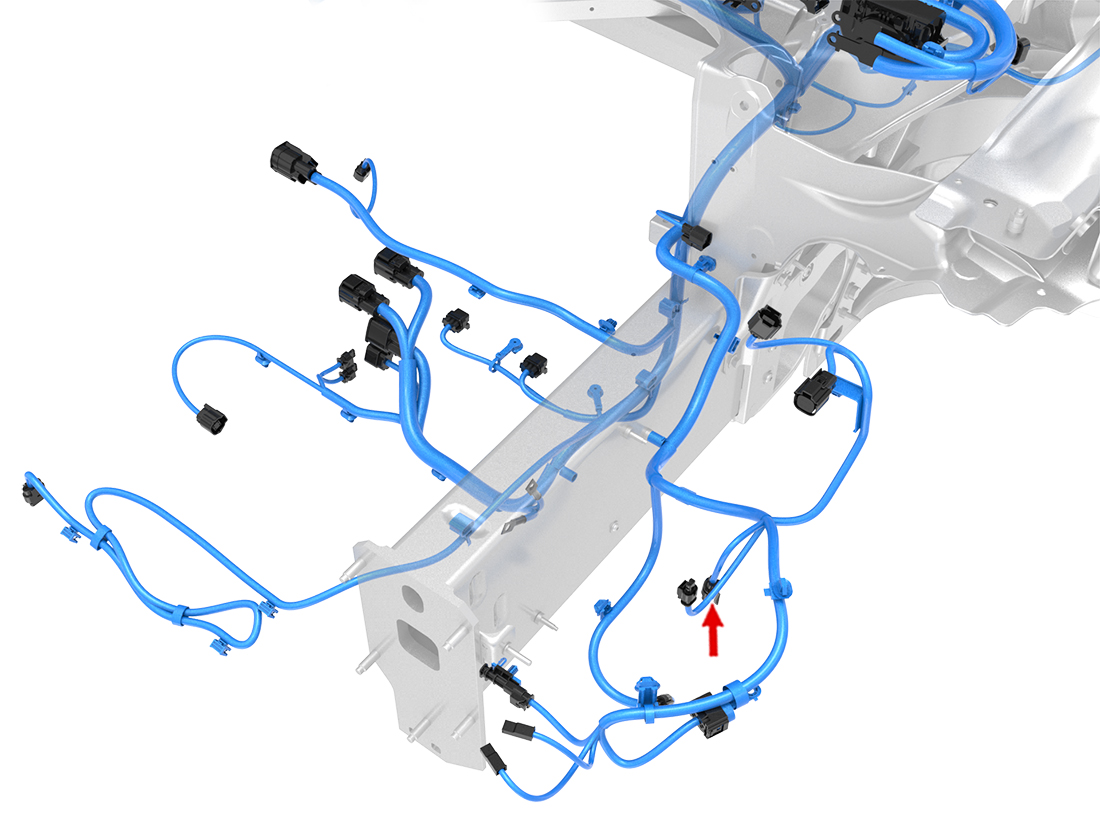

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964282-2 | 2.8x0.8FS | VT | 0.50 | AMP | 963294-1 | X050 | 7 |
| 2 | AMP | 964282-2 | 2.8x0.8FS | BU/WH | 0.50 | AMP | 963294-1 | X050 | 15 |
