X302 - x-rhd-sop9

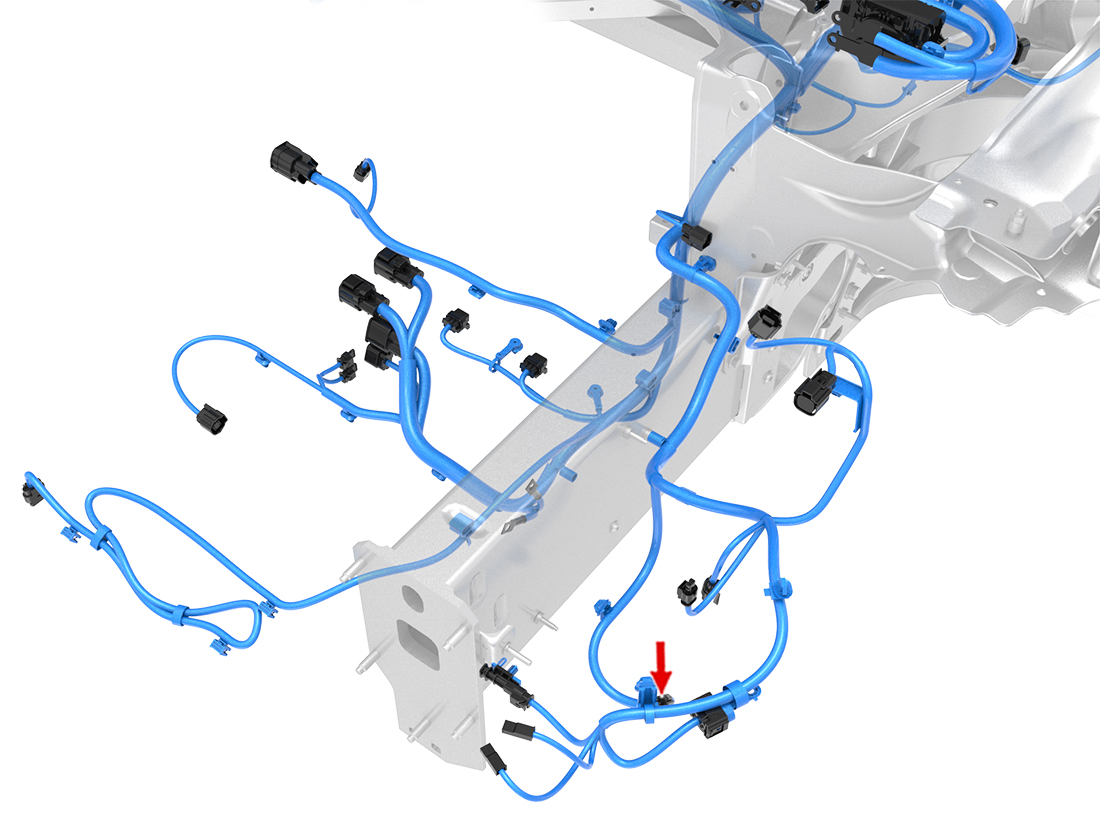

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12124076 | 1.5X0.6FS | BK | 0.50 | TESLA | MAT-125-185 | GND_FR_LH1 | 1 |
| B | DELPHI | 12124076 | 1.5X0.6FS | BN/WH | 0.50 | TESLA | MAT-125-185 | X051 | 11 |
