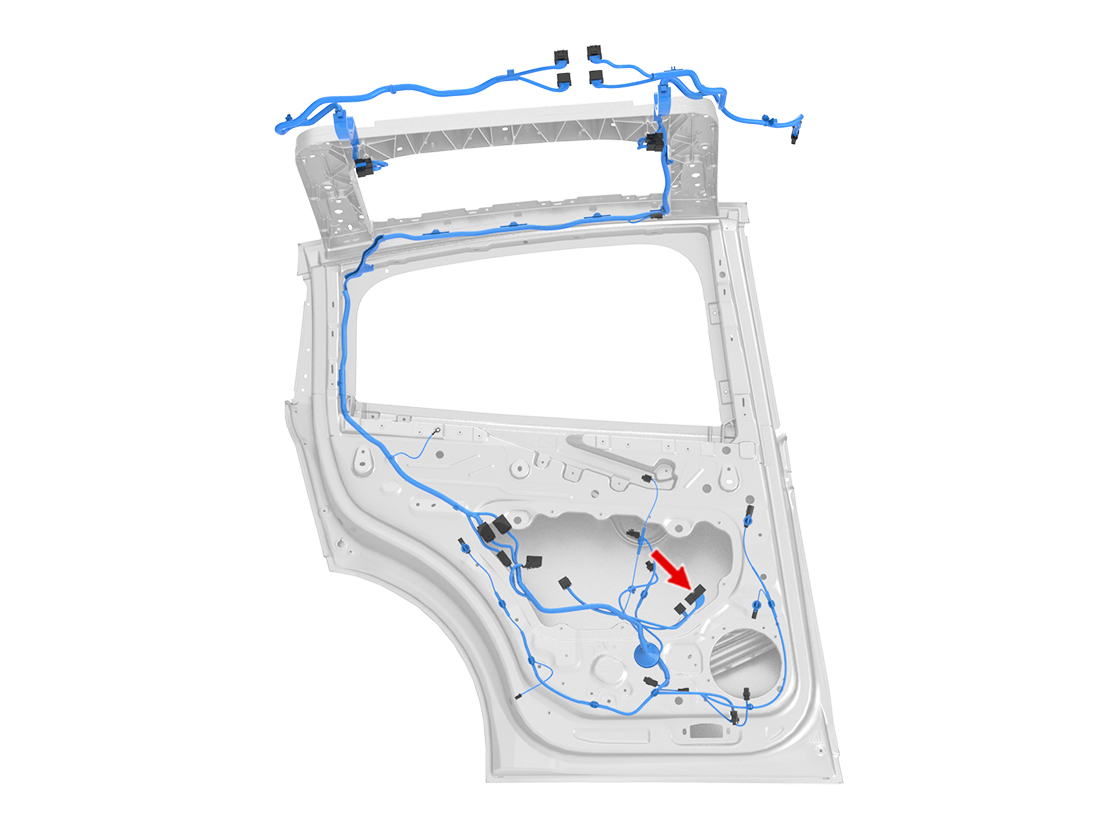

X421 - x-rhd-sop9

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X433	5
2
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X434	3
4
5
6	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X973F	15
7	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35	X973F	6
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X616	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.50	X616	3
10	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X973F	3
11	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X973F	13
12
13	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X972F	15
14	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35	X972F	22
15	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.50	X616	1
16
17
18	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35
19	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35	X972F	7
20
21
22
23	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	GND_JC_LRD_F	6
24	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35	GND_JC_LRD_F	3
25	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X425	3
26	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X447	19
27	SUMITOMO	8100-3624	0.64x0.64F	BK/GY	0.35	X972F	18
28	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X433	6
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X433	1
30	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X425	1
31
32	SUMITOMO	8100-3625	0.64x0.64F	RD/BU	0.35	X434	1
33
34
35	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X425	2
36
37
38
39	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50	X617	2
40	SUMITOMO	8100-3625	0.64x0.64F	RD/BK	0.50	X617	1
