X440 - x-rhd-sop9

Tesla Part Number
1020325-00-A
Connector
YAZAKI 7282-6075-30
Color
BK

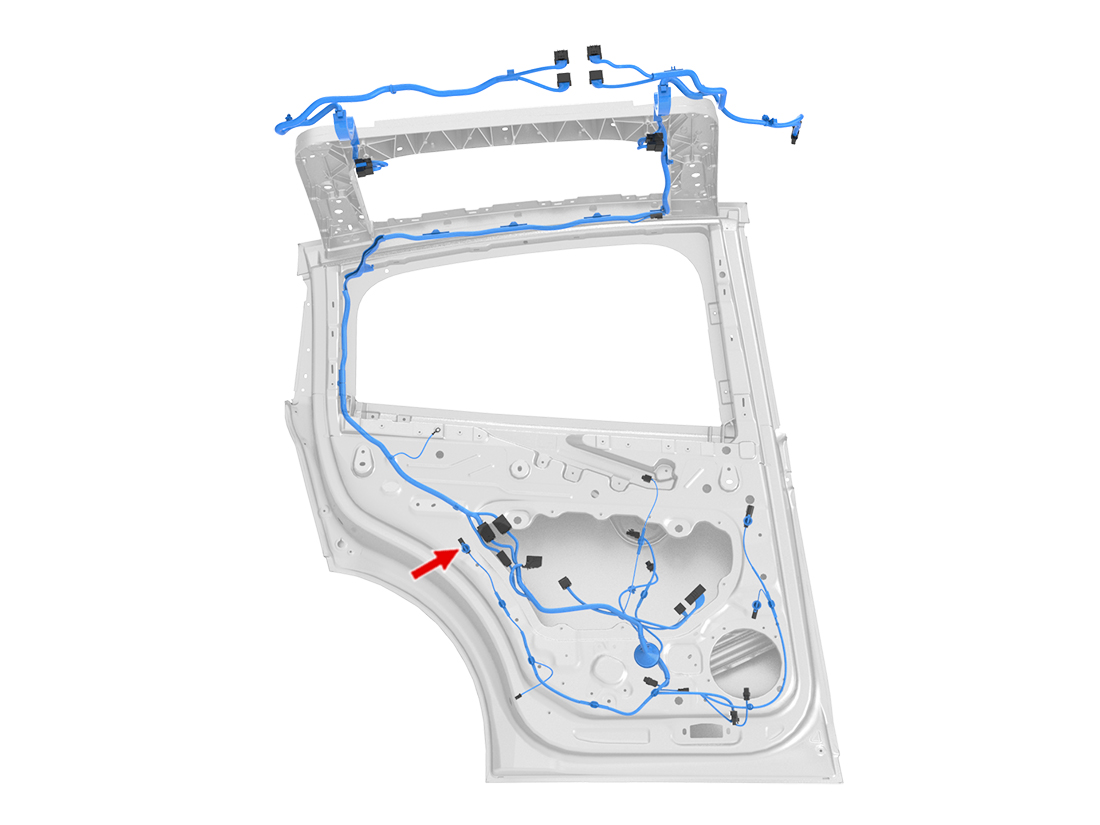

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7114-4721-020.64x0.64MGY0.50TESLAMAT-140-220X972F10
2YAZAKI7114-4721-020.64x0.64MRD0.50TESLAMAT-140-220X972F8
