X491 - x-rhd-sop9

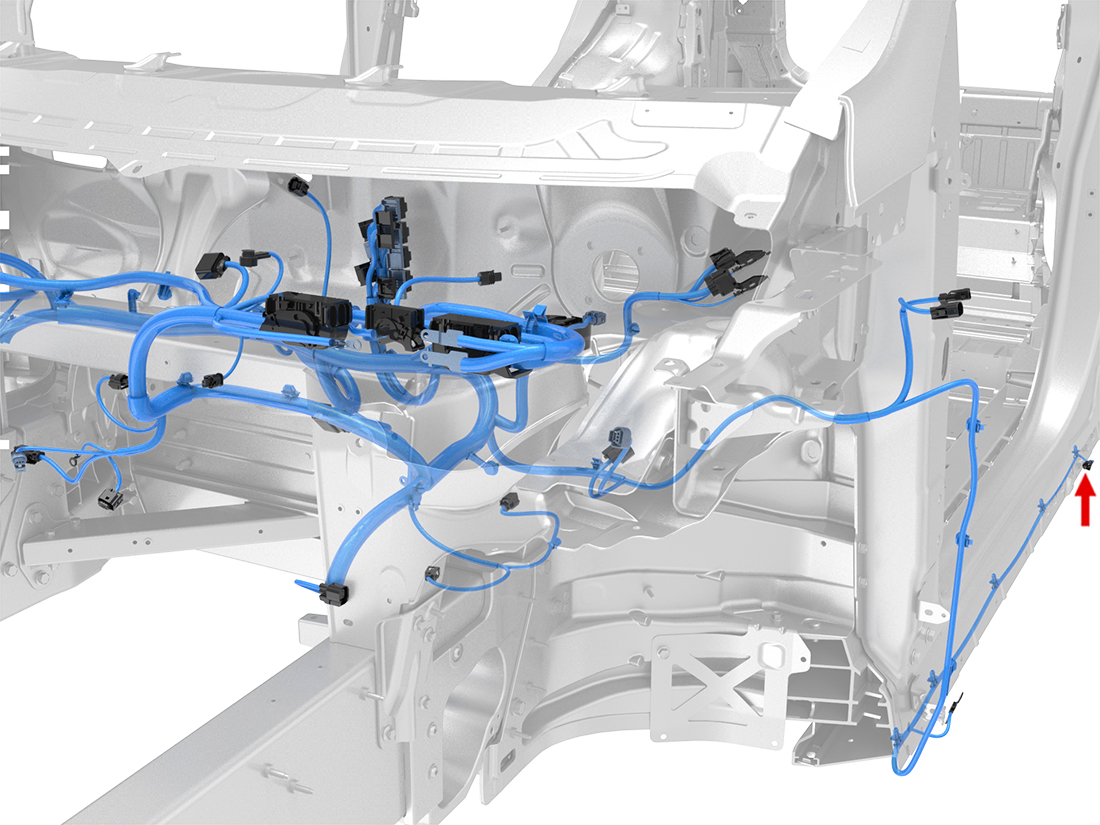

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13806233 | 1.2x0.6FS | RD | 0.50 | DELPHI | 33402838 | X062 | 16 |
| 2 | DELPHI | 13806233 | 1.2x0.6FS | BK | 0.50 | DELPHI | 33402838 | X062 | 5 |
