X525 - x-rhd-sop9

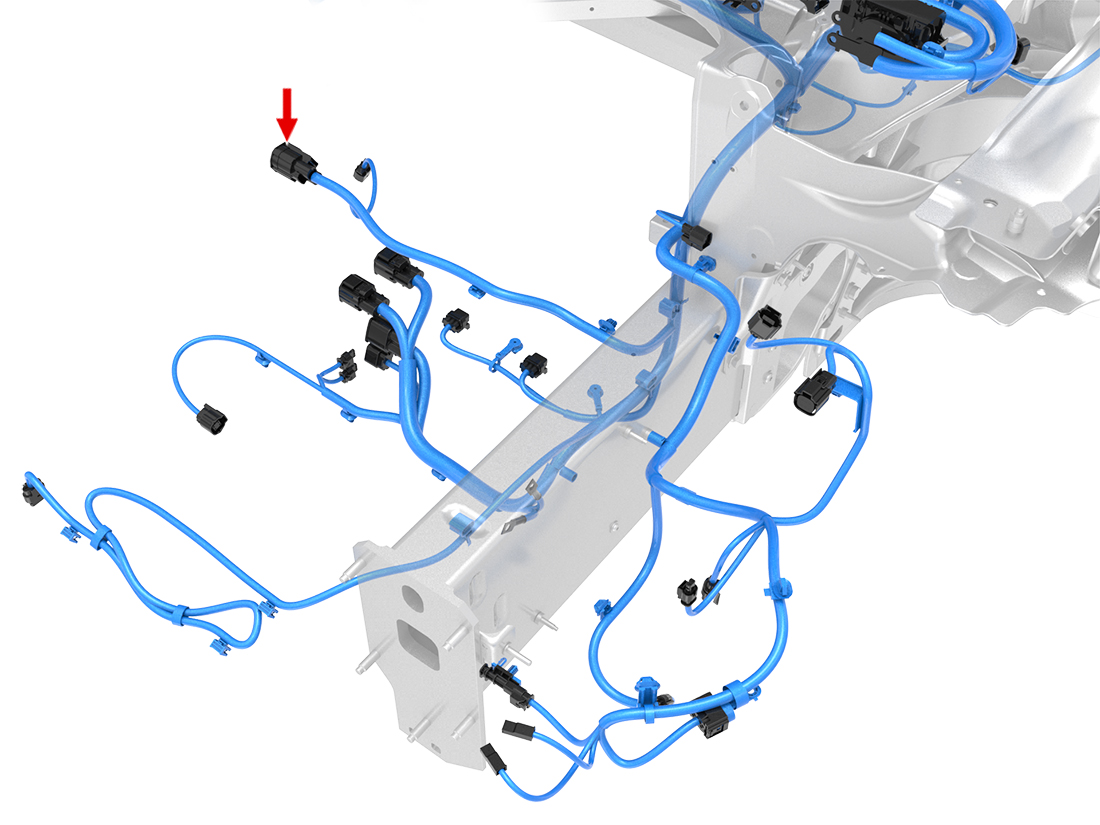

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-3250 | 9.5x1.2FS | RD/WH | 5.0 | YAZAKI | 7172-5184 | X037 | 1 |
| 2 | YAZAKI | 7116-3250 | 9.5x1.2FS | BK | 5.0 | YAZAKI | 7172-5184 | GND_FR_LH1 | 1 |
| 3 | |||||||||
| 4 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | BU/WH | 0.50 | YAZAKI | 7158-3030-50 | X502 | 6 |
