X527 - x-rhd-sop9

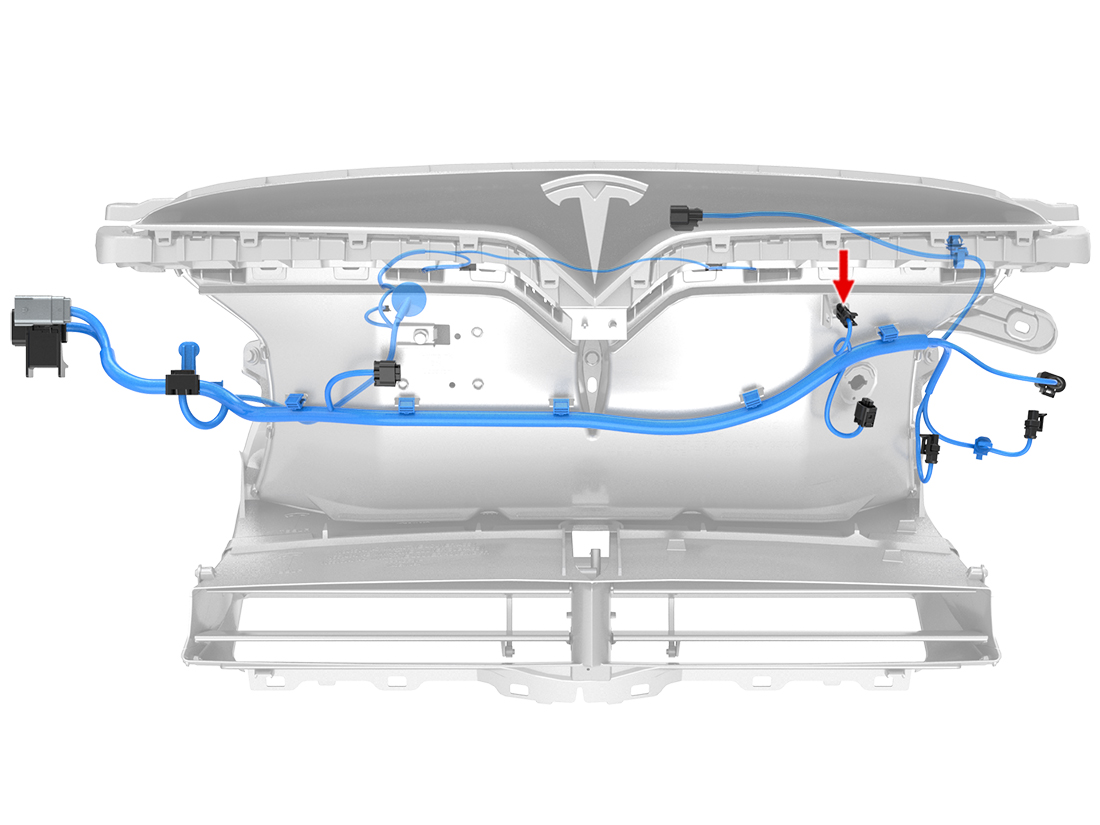

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KET | 730495-3 | 1.8x0.64FS | BN | 0.50 | KET | 680448 | X905M | 2 |
| 2 | KET | 730495-3 | 1.8x0.64FS | BU | 0.50 | KET | 680448 | X905M | 1 |
