X530 - x-rhd-sop9

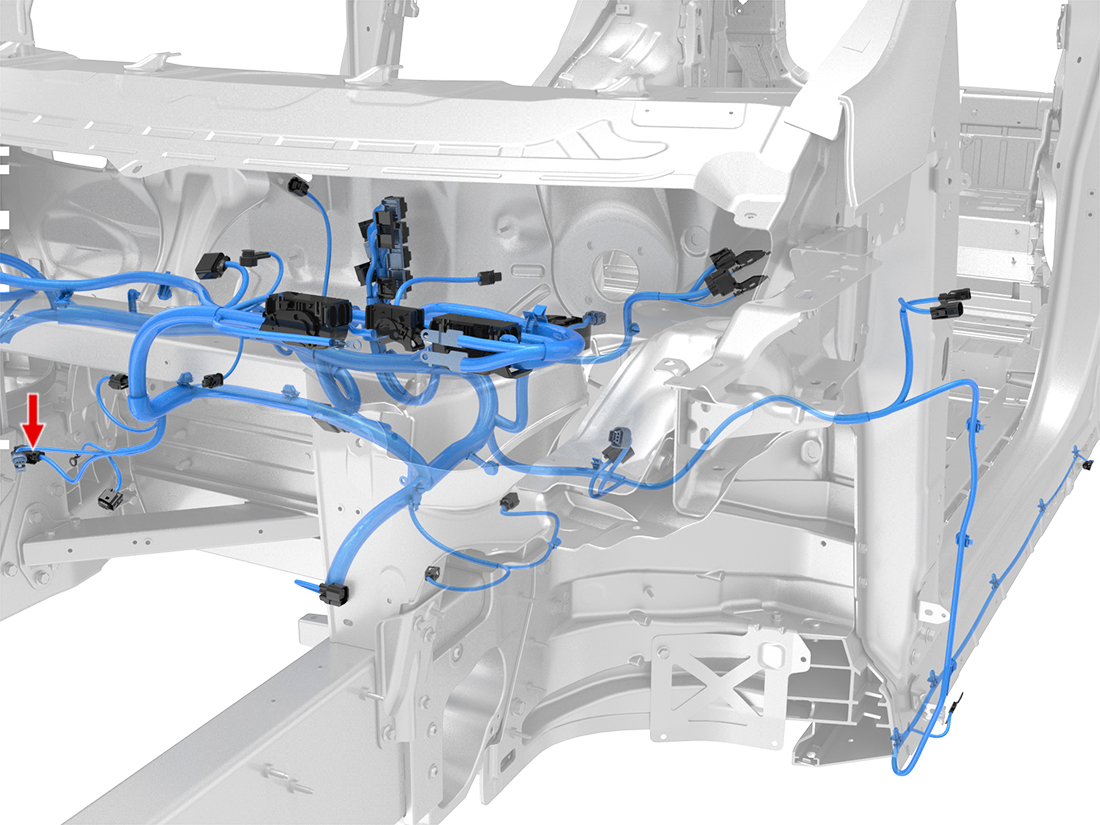

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3003 | 1.5x0.8F | BN/WH | 0.50 | TESLA | MAT-120-240 | X500 | 18 |
| 2 | MOLEX | 33012-3003 | 1.5x0.8F | BU/WH | 0.50 | TESLA | MAT-120-240 | X751 | 8 |
| 3 | MOLEX | 33012-3003 | 1.5x0.8F | BU | 0.50 | TESLA | MAT-120-240 | X751 | 19 |
| 4 | MOLEX | 33012-3003 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_FR_LH1 | 1 |
