X730 - x-rhd-sop9

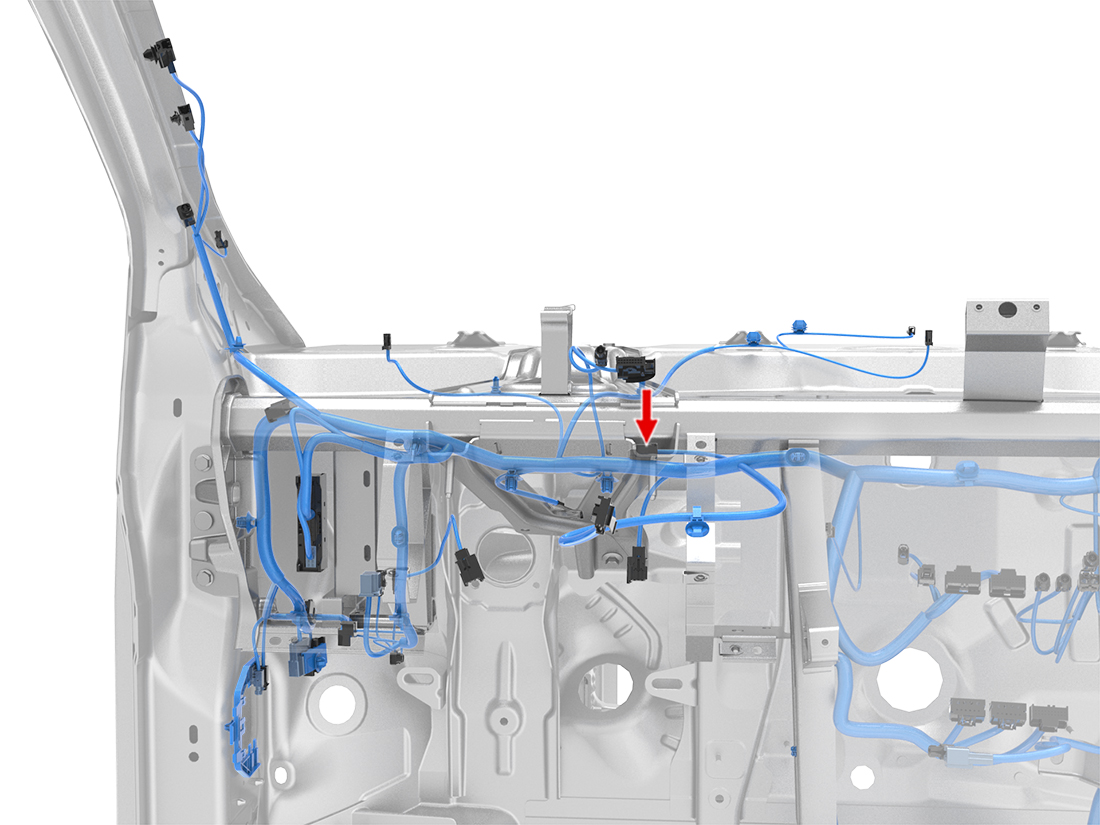

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | X914F_1 | 17 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X171 | 5 | ||
| 5 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X179 | 13 | ||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X126 | 9 | ||
| 7 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X177 | 6 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X178 | 1 | ||
| 9 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X180 | 2 | ||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | SUMITOMO | 8240-0182 | 0.64x0.64F | GN | 0.13 | X914F_1 | 7 | ||
| 15 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X171 | 15 | ||
| 16 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X179 | 14 | ||
| 17 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X126 | 10 | ||
| 18 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X177 | 7 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.50 | X178 | 9 | ||
| 20 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X180 | 1 | ||
| 21 | |||||||||
| 22 | |||||||||
