X816 - x-rhd-sop9

Tesla Part Number
1073368-02-A
Connector
ROSENBERGER 59Z006-T00-C
Color
BU

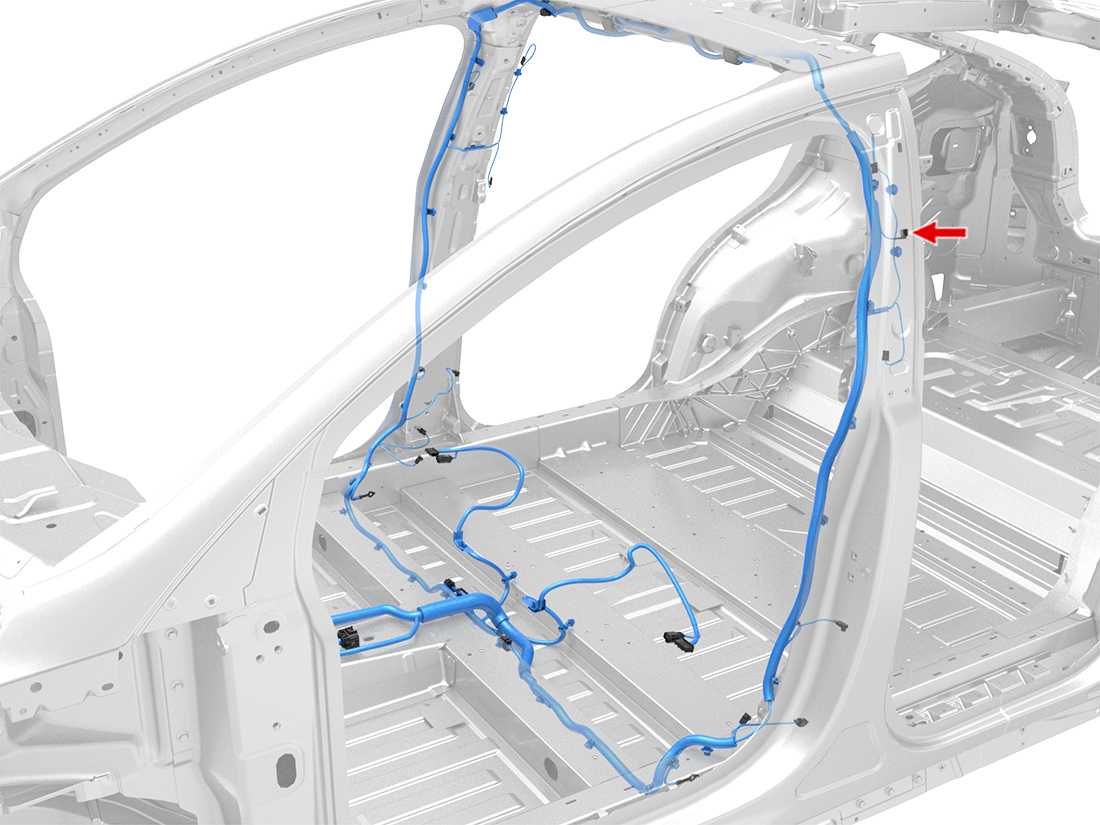

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K2DV-102A4COAX-FBKRG316X822F1
