X820M - x-rhd-sop9

Tesla Part Number
1049861-05-A
Connector
ROSENBERGER 59Z120-C00-F
Color
BN

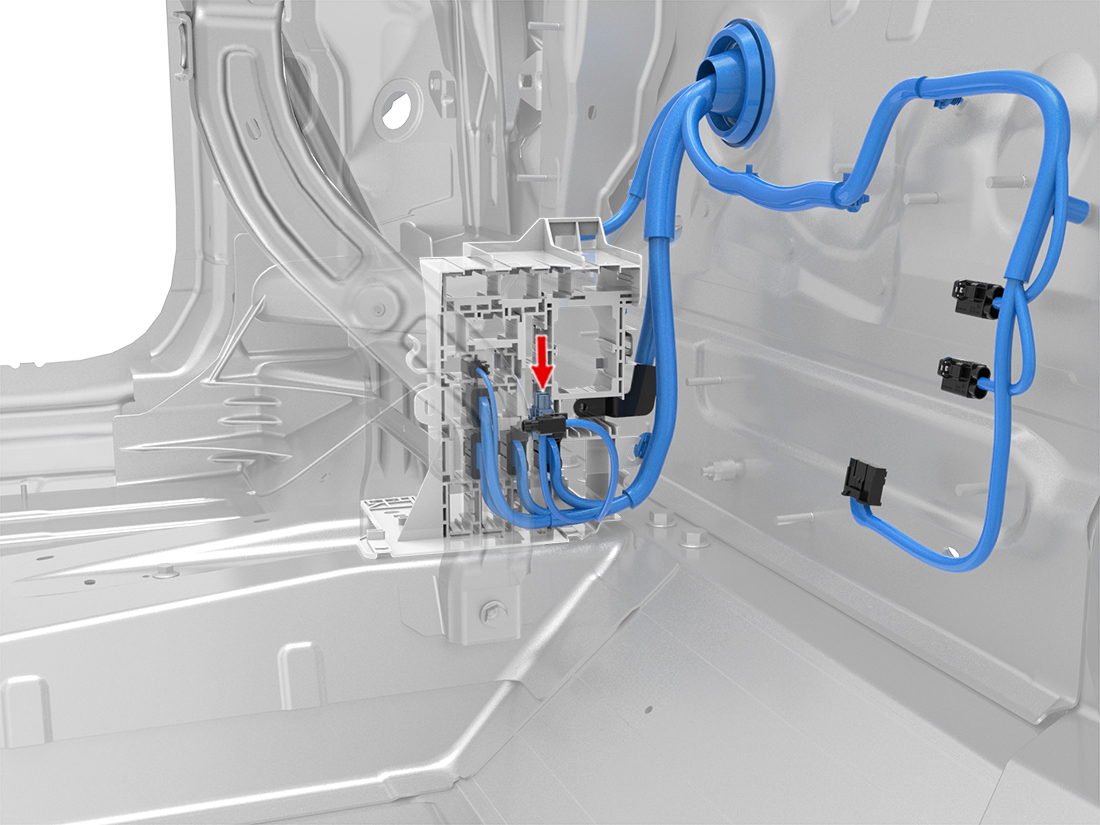

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-1M4T4COAXMBKD302X8191
2ROSENBERGER59S16A-1M4T4COAXMBKD302X8211
