X893M - x-rhd-sop9

Tesla Part Number
1058577-00-A
Connector
ROSENBERGER 59Z118-C00-A
Color
BK

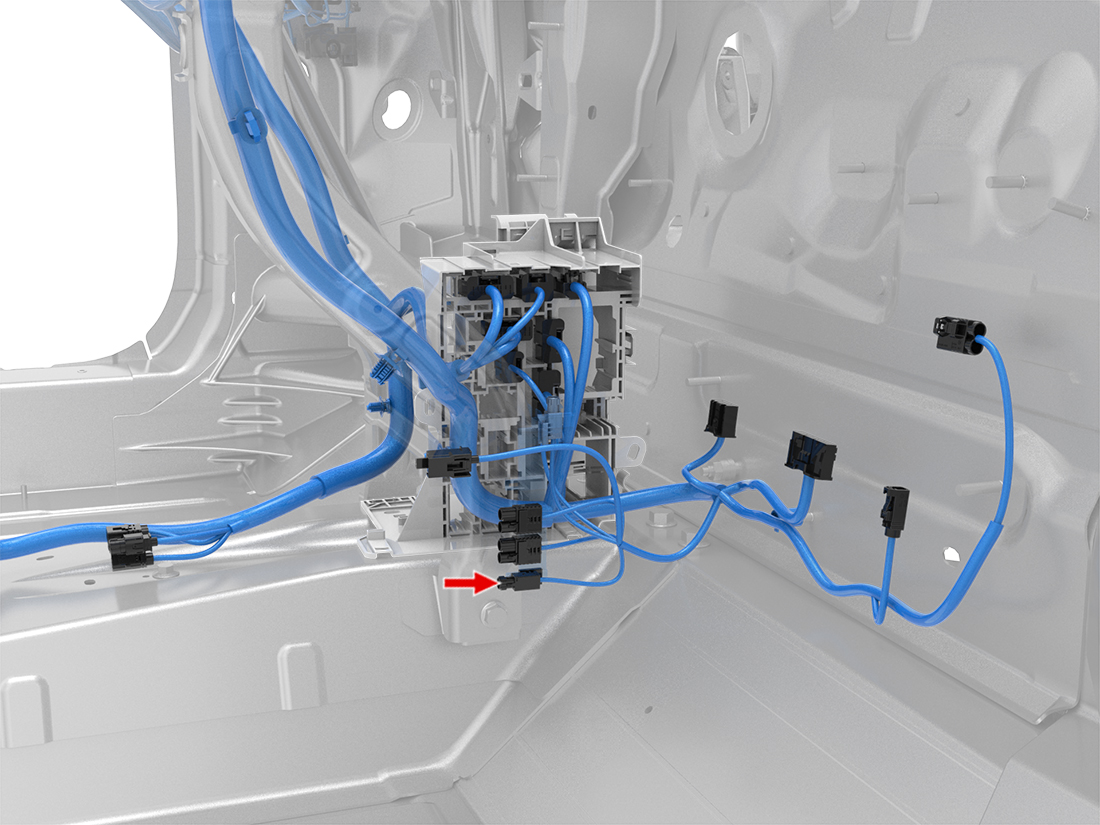

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316X8911
