X906M - x-rhd-sop9

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

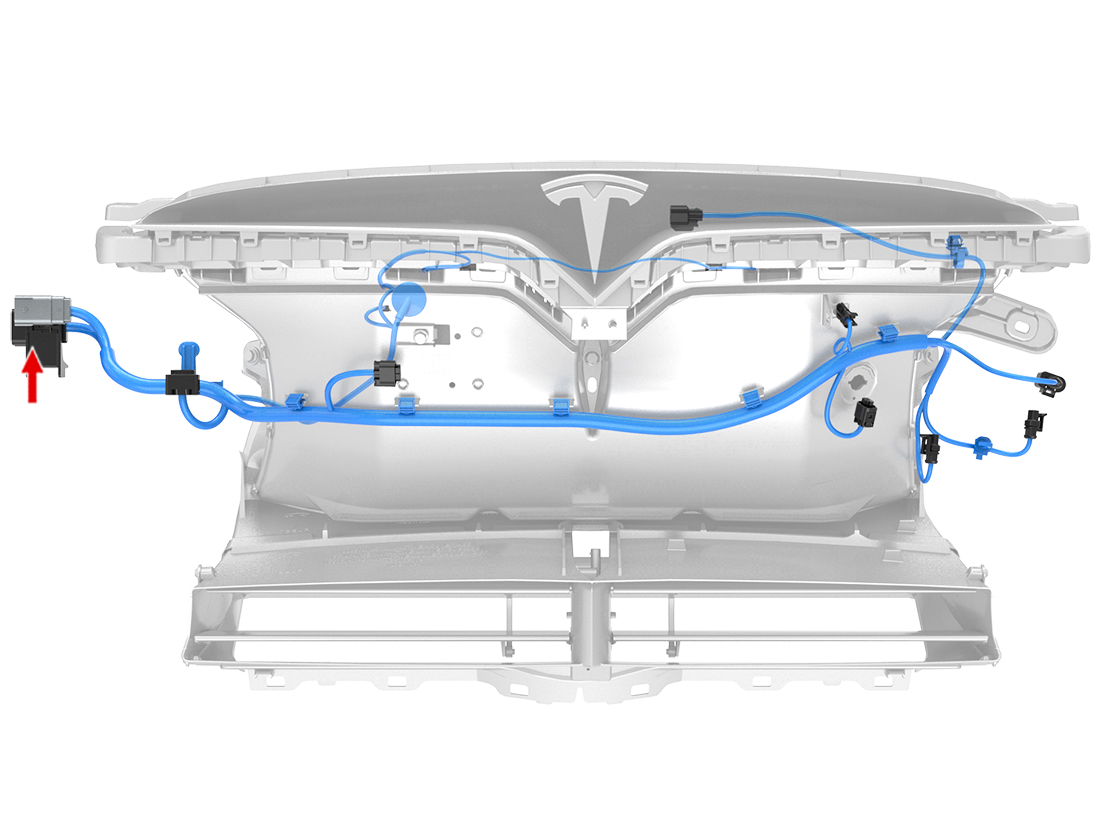

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X223	2
2	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X223	1
3	MOLEX	33000-0004	1.5x0.8M	RD/BU	0.50	TESLA	MAT-120-240	X487	3
4	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X543	1
5	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.50	TESLA	MAT-120-240	X543	3
6	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.50	TESLA	MAT-120-240	X127	5
7	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X127	6
8
9	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X224	2
10	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X224	1
11	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X127	4
12	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X485A	3
13	MOLEX	33000-0004	1.5x0.8M	VT/WH	0.50	TESLA	MAT-120-240	X485A	1
14	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X333	1
15				BK	0.75	TESLA	MAT-120-240
16
