X911F - x-rhd-sop9

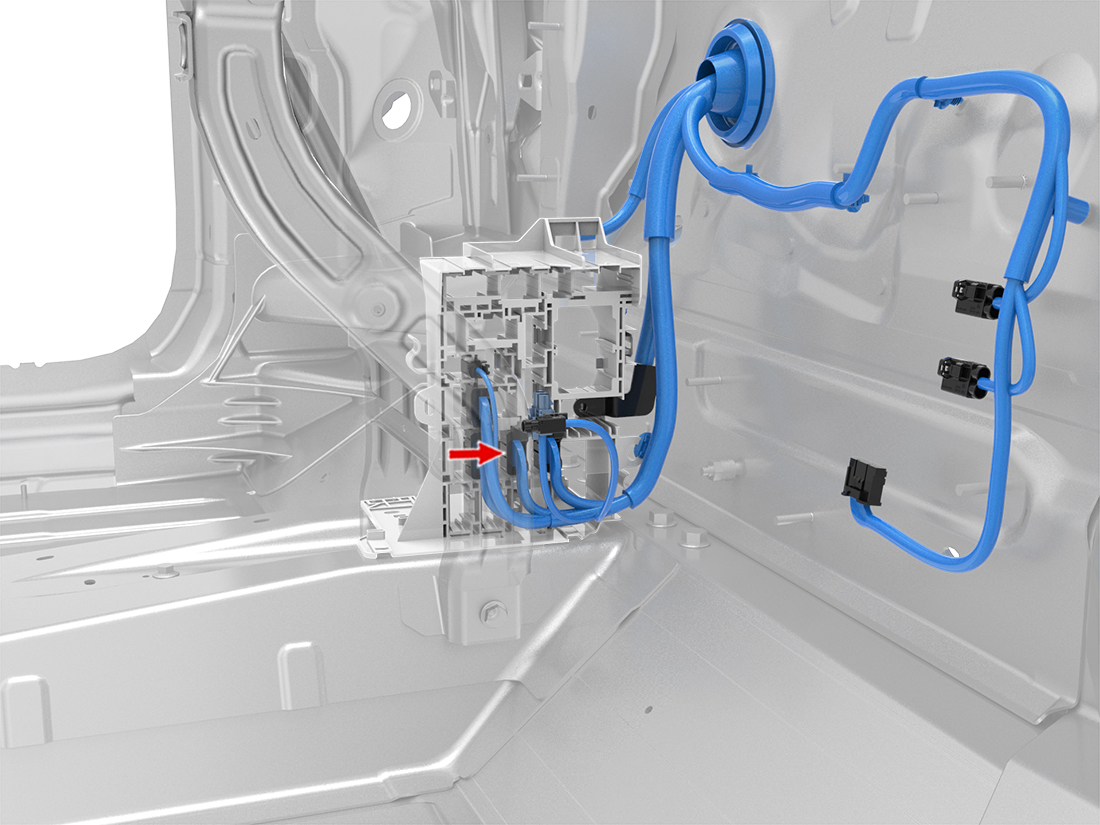

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT/WH | 0.50 | X003 | 33 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT/WH | 0.35 | X068 | 16 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | BR/WH | 0.35 | X068 | 15 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.50 | X905F | 2 | ||
| 5 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | X750 | 1 | ||
| 6 | |||||||||
| 7 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | X751 | 9 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.50 | X905F | 1 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X151 | 31 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.50 | X151 | 18 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU/WH | 0.35 | X068 | 5 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X068 | 4 | ||
| 15 | SUMITOMO | 8240-0182 | 0.64x0.64F | GN | 0.13 | X750 | 12 | ||
| 16 | |||||||||
| 17 | SUMITOMO | 8240-0182 | 0.64x0.64F | BU | 0.13 | X751 | 20 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/WH | 0.50 | X151 | 17 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | X151 | 29 | ||
| 20 | |||||||||
