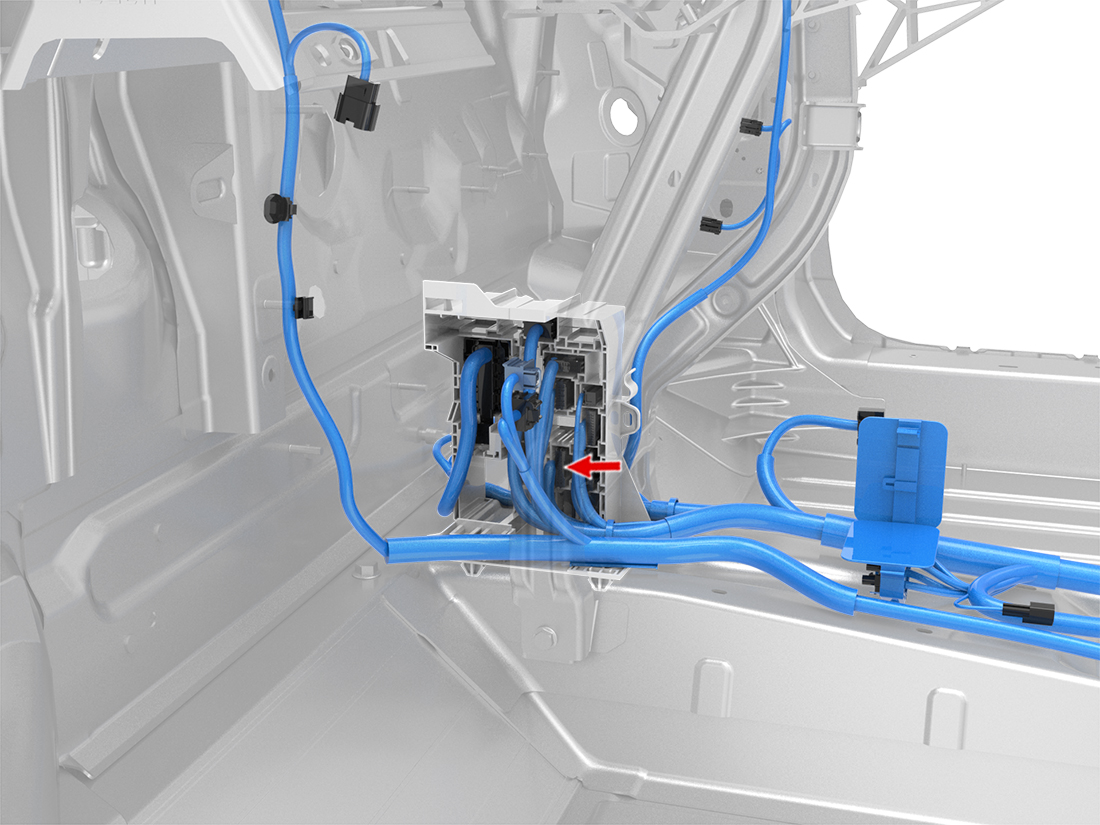

X911M - x-rhd-sop9

Tesla Part Number

1042620-01-A

Connector

SUMITOMO 6098-5616

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	VT/WH	0.35	X061	38
2	SUMITOMO	8100-3623	0.64x0.64M	VT/WH	0.35	X952M	6
3	SUMITOMO	8100-3623	0.64x0.64M	BR/WH	0.35	X952M	5
4	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13	X061	25
5	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X703	6
6
7	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X700	1
8	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X061	24
9	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.50	X953M	5
10	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50	X953M	6
11
12
13	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.35	X952M	13
14	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35	X952M	14
15	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X703	17
16
17	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X700	7
18	SUMITOMO	8100-3623	0.64x0.64M	BK/WH	0.50	X953M	11
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50	X953M	12
20
