X912M - x-rhd-sop9

Tesla Part Number

1042615-02-A

Connector

SUMITOMO 6098-5639

Color

BU

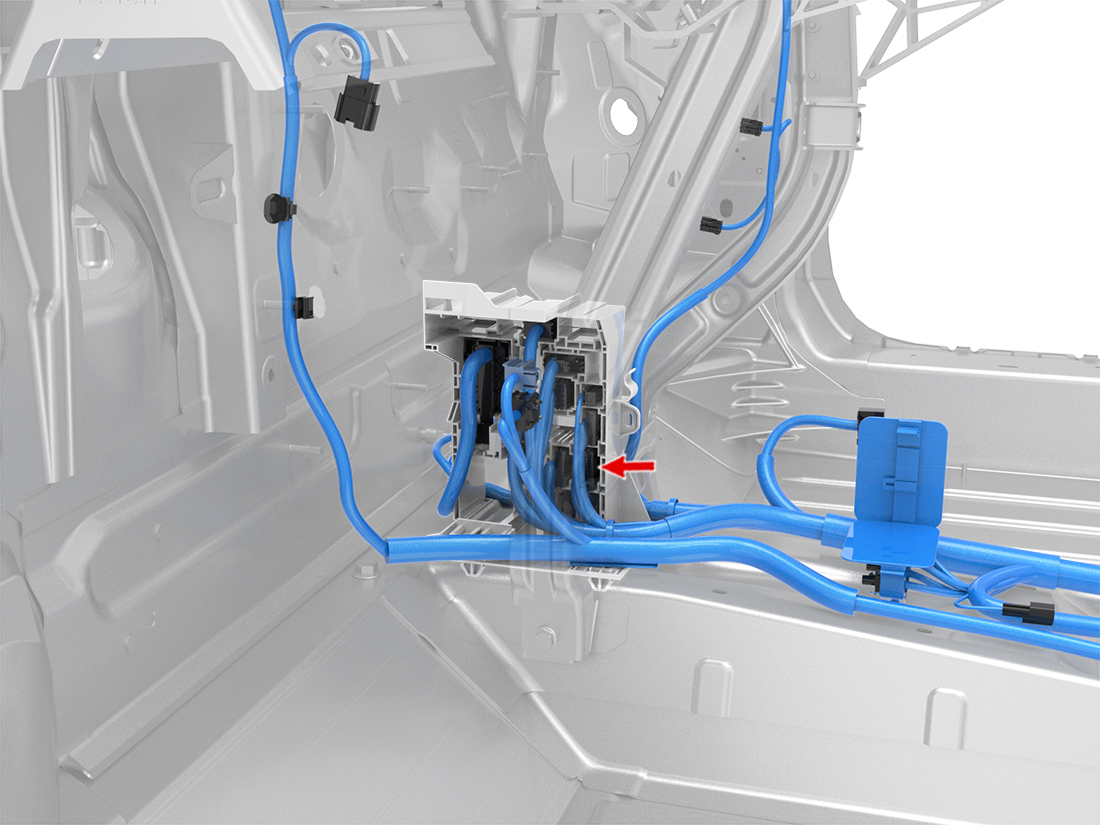

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X073	16
2	SUMITOMO	8230-4925	1.5x0.6M	GY	0.35			X537	13
3	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X537	5
4	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13			X537	6
5	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X537	2
6	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X537	4
7	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X544	3
8	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X544	4
9	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X545	3
10	SUMITOMO	8230-4923	1.5x0.6M	RD/GN	2.00			X538	1
11	SUMITOMO	8230-4924	1.5x0.6M	RD	1.00			X275	8
12
13	SUMITOMO	8100-3622	0.64x0.64M	WH	0.35			X537	14
14	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X537	3
15	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35
16	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35
17	SUMITOMO	8230-4878	0.64x0.64M	BK	0.13			X701	12
18	SUMITOMO	8230-4923	1.5x0.6M	RD/WH	2.00			X160	8
