X913M - x-rhd-sop9

Tesla Part Number

1042613-03-A

Connector

SUMITOMO 6098-5600

Color

GY

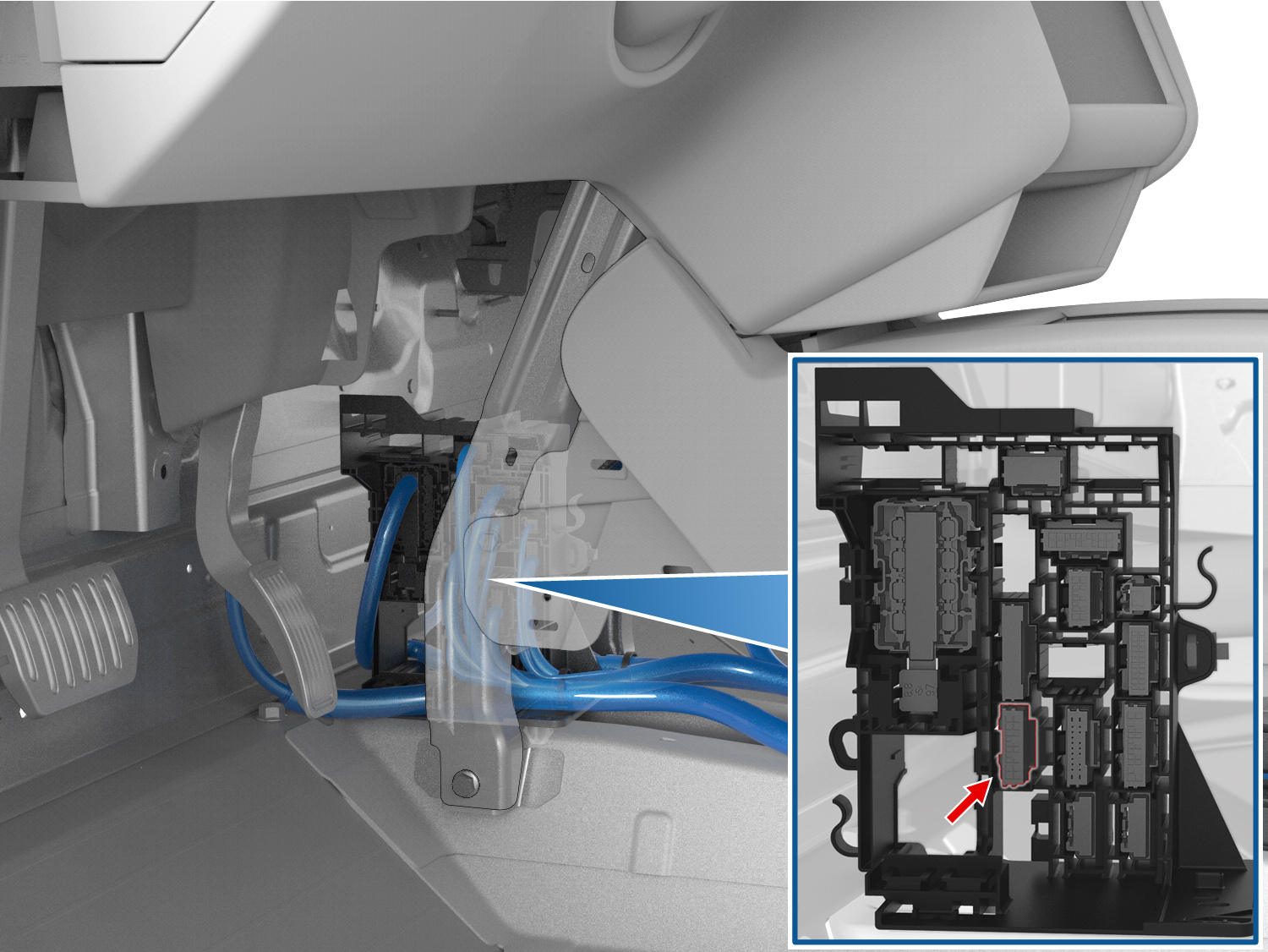

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X536	1
2
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X953M	1
4	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X953M	2
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X953M	3
6	SUMITOMO	8100-3623	0.64x0.64M	RD/VT	0.50			X953M	7
7	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X953M	8
8	SUMITOMO	8100-3623	0.64x0.64M	BK/VT	0.50			X953M	9
9	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X952M	12
10	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X952M	4
11	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X028	1
12	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X098	10
13	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35
14	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35
15	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X537	11
16	SUMITOMO	8100-3622	0.64x0.64M	VT/WH	0.35			X061	18
17	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X700	6
18	SUMITOMO	8230-4924	1.5x0.6M	RD/WH	1.00			X073	1
