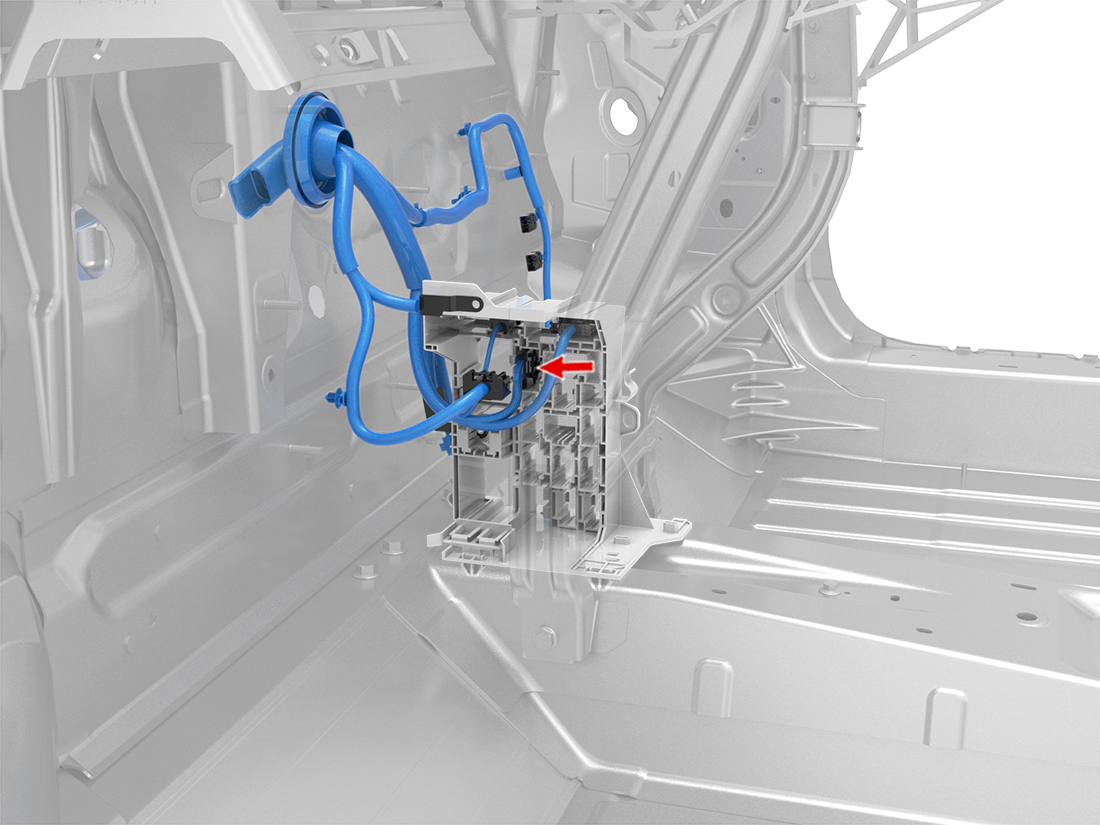

X914M - x-rhd-sop9

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	RD	1.00	X003	10
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50	X905F	7
3	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.50	X003	1
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X012	3
5	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X052	1
6	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X750	7
7	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X750	17
8
9	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.50	X905F	3
10	SUMITOMO	8100-3623	0.64x0.64M	OG	0.50	X211	1
11	SUMITOMO	8230-4925	1.5x0.6M	OG	0.50	X210	1
12
13	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50	X300A	4
14	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X012	2
15	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13	X052	12
16	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13	X750	18
17	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X750	6
18	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50	X905F	9
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50	X211	2
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50	X210	2
