X925M - x-rhd-sop9

Tesla Part Number

1042617-03-A

Connector

SUMITOMO 6098-5655

Color

GY

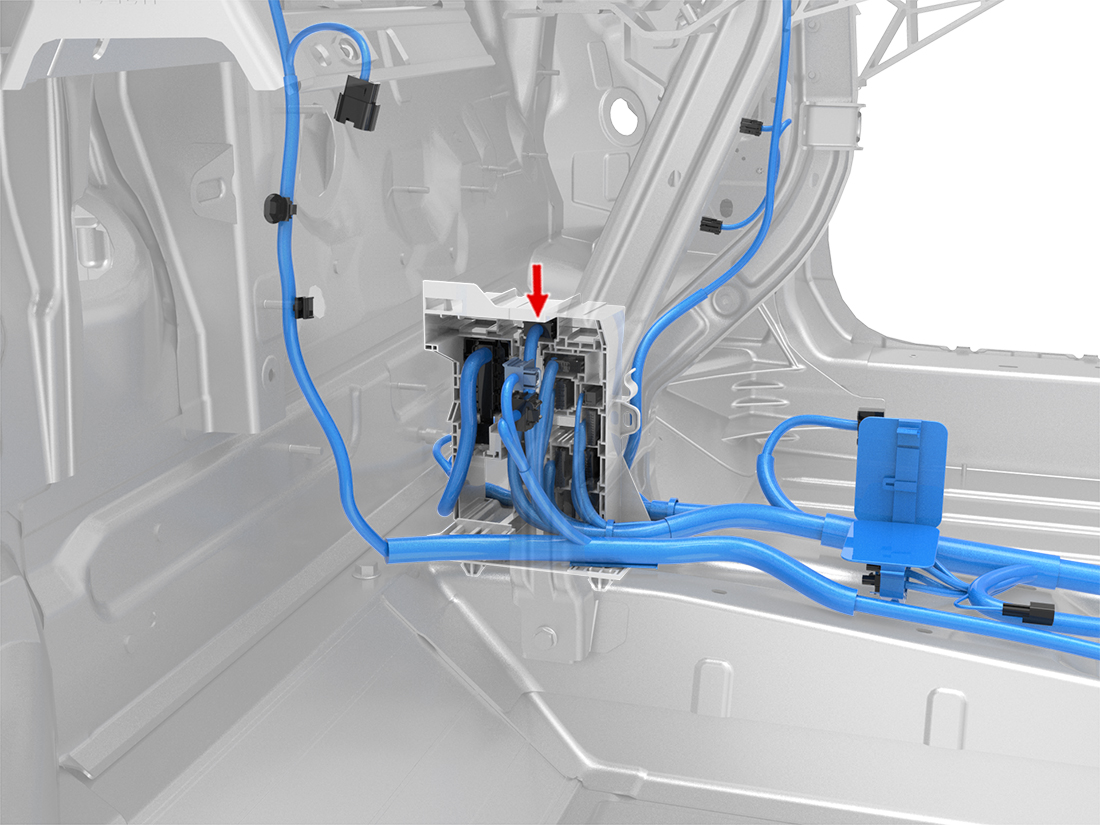

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU	1.50			X600	1
2	SUMITOMO	8230-4923	1.5x0.6M	BK	1.50			X600	2
3	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X954M	1
4	SUMITOMO	8230-4924	1.5x0.6M	VT	0.75			X954M	11
5	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X954M	2
6	SUMITOMO	8230-4924	1.5x0.6M	BK	0.75			X954M	12
7	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X970M	3
8	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X976M	8
9	SUMITOMO	8100-3622	0.64x0.64M	WH	0.35			X701	7
10	SUMITOMO	8100-3622	0.64x0.64M	RD/BU	0.35			X980M	6
11
12	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X971M	3
13	SUMITOMO	8230-4923	1.5x0.6M	GY	1.50			X970M	4
14	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X976M	10
15	SUMITOMO	8100-3622	0.64x0.64M	GN	0.35			X980M	8
16	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X540	16
17	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X970M	10
18	SUMITOMO	8230-4923	1.5x0.6M	BU	1.50			X971M	4
