X926M - x-rhd-sop9

Tesla Part Number

1042613-00-A

Connector

SUMITOMO 6098-5594

Color

WH

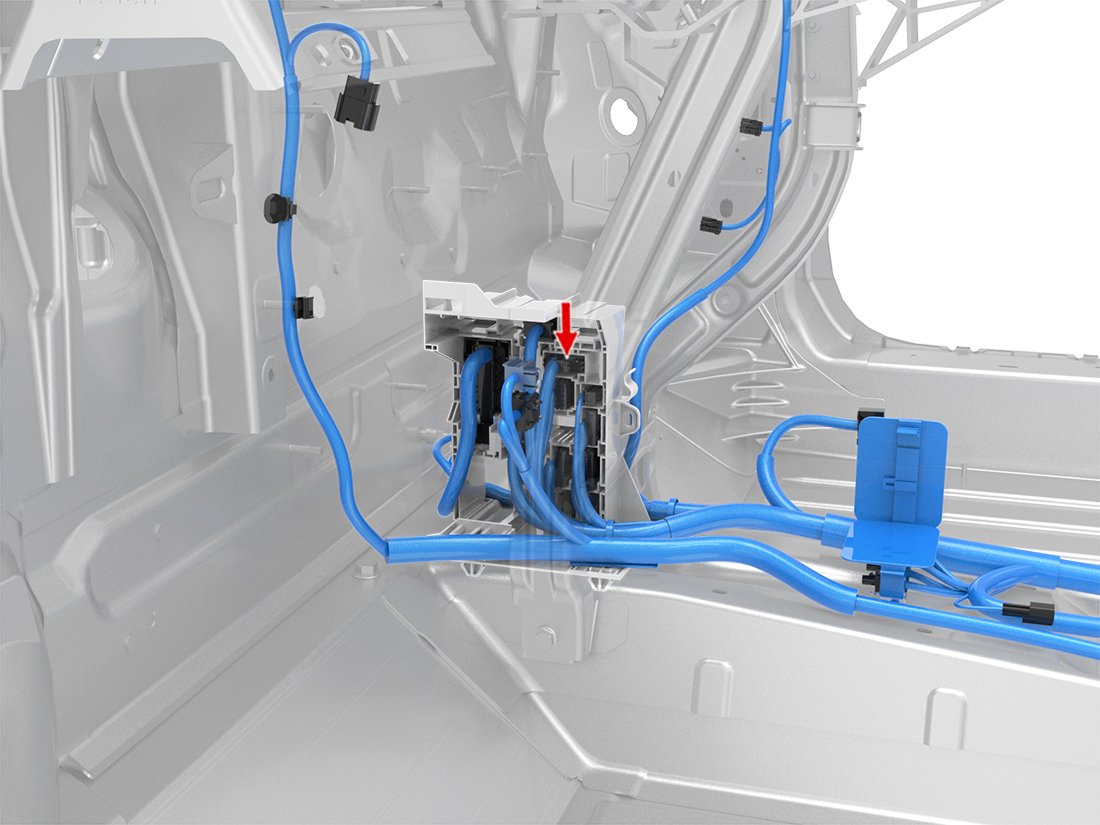

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	GY	1.50			X027	6
2	SUMITOMO	8230-4925	1.5x0.6M	RD/WH	0.35			X028	9
3	SUMITOMO	8100-3622	0.64x0.64M	VT/WH	0.35			X130	15
4	SUMITOMO	8100-3622	0.64x0.64M	GY	0.35			X148	1
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	19
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	22
7	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X970M	11
8	SUMITOMO	8100-3622	0.64x0.64M	GN	0.35			X945	11
9	SUMITOMO	8230-4923	1.5x0.6M	BU	1.50			X275	9
10	SUMITOMO	8230-4924	1.5x0.6M	WH	1.00			X027	1
11
12
13	SUMITOMO	8100-3622	0.64x0.64M	VT	0.35			X130	6
14	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X201	20
15	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	21
16	SUMITOMO	8100-3622	0.64x0.64M	GN/WH	0.35			X945	23
17	SUMITOMO	8230-4925	1.5x0.6M	RD/BU	0.35			X981M	6
18	SUMITOMO	8230-4924	1.5x0.6M	GN	1.00			X027	3
