X950M - x-rhd-sop9

Tesla Part Number

1003238-00-B

Connector

MOLEX 33482-6201

Color

BK

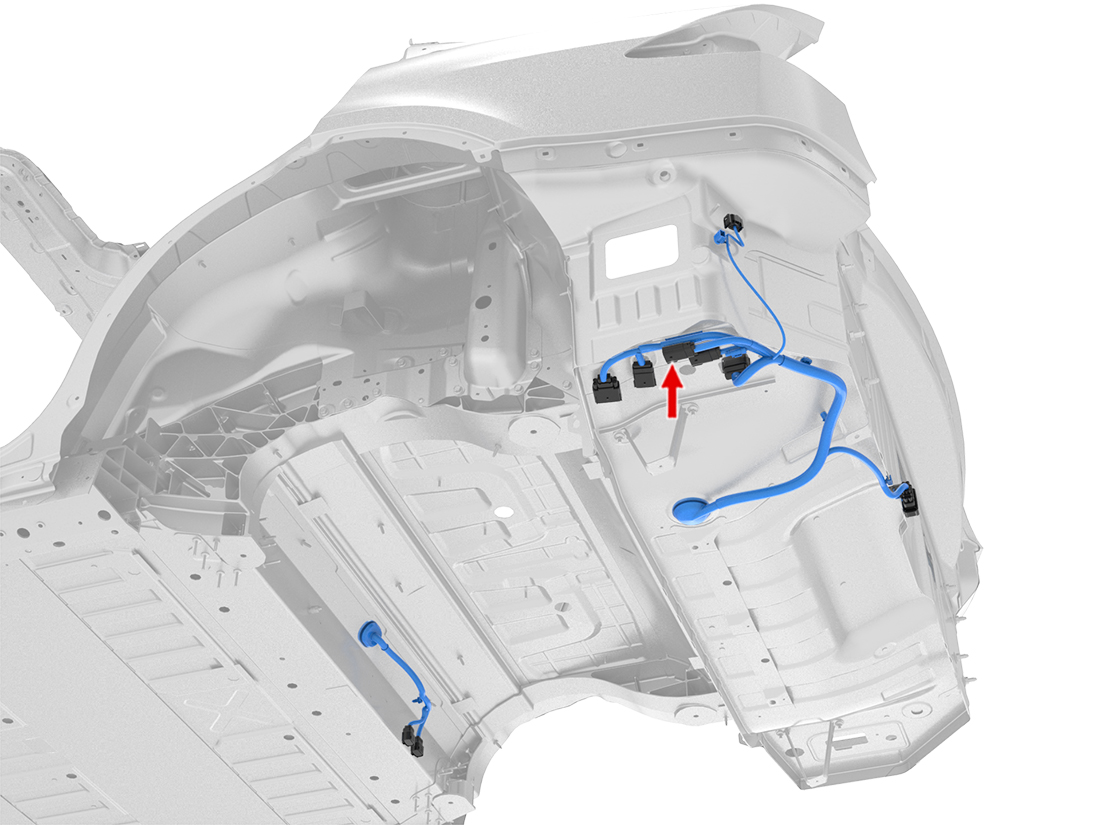

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X131	18
3	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X131	22
4	MOLEX	33000-0004	1.5x0.8M	VT/WH	0.50	TESLA	MAT-120-240	X131	21
5	MOLEX	33000-0004	1.5x0.8M	VT	0.50	TESLA	MAT-120-240	X131	7
6
7
8	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X130	1
9	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X130	5
10	MOLEX	33000-0004	1.5x0.8M	GY/WH	0.50	TESLA	MAT-120-240	X131	20
11	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X131	6
12
