X953M - x-rhd-sop9

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

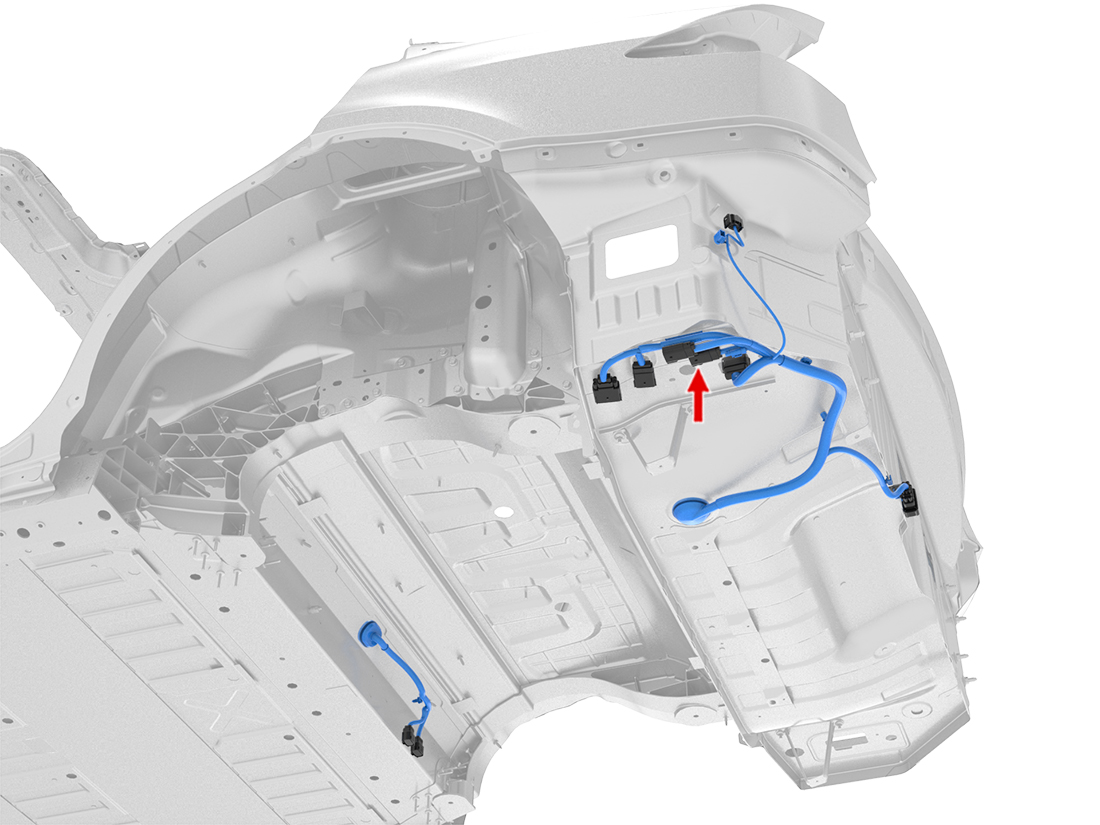

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X913M	3
2	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X913M	4
3	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X913M	5
4
5	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.50	TESLA	MAT-120-240	X911M	9
6	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X911M	10
7	MOLEX	33000-0004	1.5x0.8M	RD/VT	0.50	TESLA	MAT-120-240	X913M	6
8	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X913M	7
9	MOLEX	33000-0004	1.5x0.8M	BK/VT	0.50	TESLA	MAT-120-240	X913M	8
10
11	MOLEX	33000-0004	1.5x0.8M	BK/WH	0.50	TESLA	MAT-120-240	X911M	18
12	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X911M	19
13	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X910M	1
14	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X910M	22
15	MOLEX	33000-0004	1.5x0.8M	BR	0.35	TESLA	MAT-120-240	X910M	13
16	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X910M	12
