X958 - x-rhd-sop9

Tesla Part Number

1051423-00-B

Connector

MOLEX 34985-1601

Color

BK

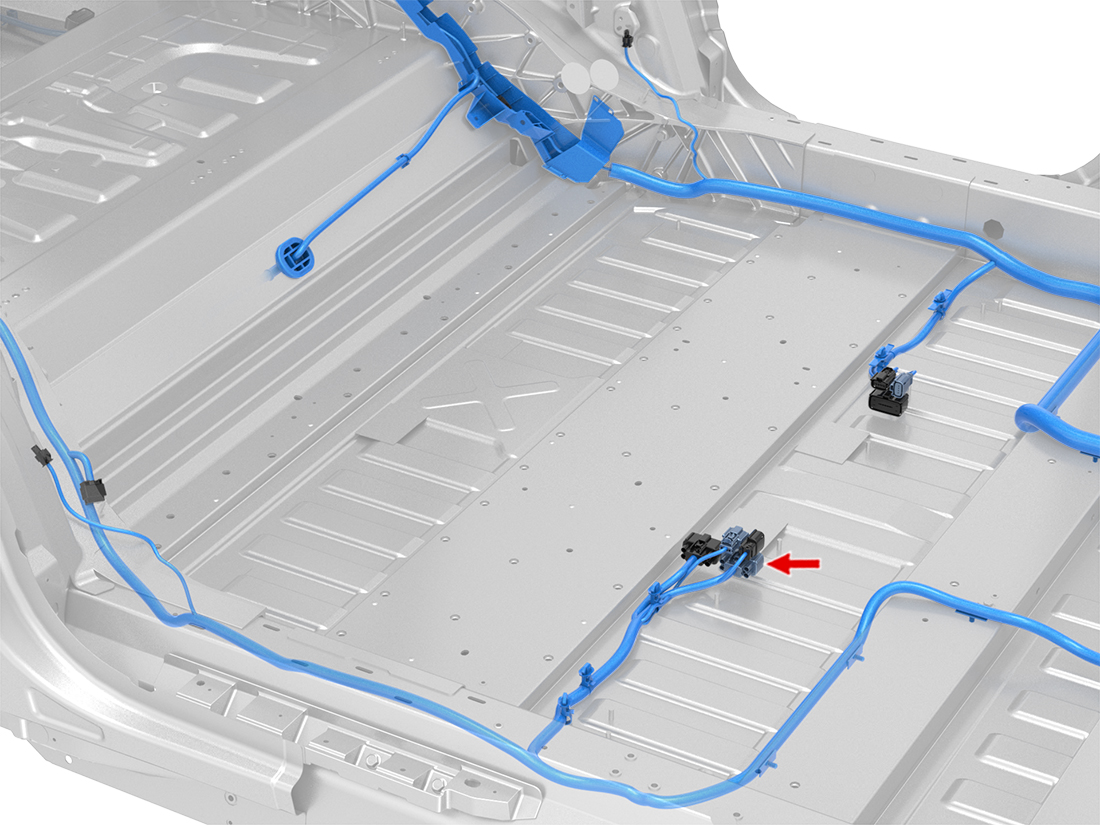

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326032-5	2.8x0.8FS	BU	2.00	YAZAKI	7158-3113-40	X043	7
2	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.50	TESLA	MAT-120-240	X708	4
3	MOLEX	33012-3004	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X708	15
4	MOLEX	33012-3004	1.5x0.8F	BU/WH	0.50	TESLA	MAT-120-240	X962	7
5
6	MOLEX	33012-3004	1.5x0.8F	RD/WH	0.50	TESLA	MAT-120-240	X962	4
7
8	AMP	1326032-5	2.8x0.8FS	BK	2.00	YAZAKI	7158-3113-40	GND_C2	1
9	AMP	1326032-3	2.8x0.8FS	VT	0.75	YAZAKI	7158-3111-60	X962	1
10	MOLEX	33012-3004	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X962	2
11	MOLEX	33012-3004	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X962	3
12	MOLEX	33012-3004	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X962	10
13	MOLEX	33012-3002	1.5x0.8F	BK	0.75	TESLA	MAT-120-240	X962	11
14	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X962	5
15	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X962	6
16
