X981M - x-rhd-sop9

Tesla Part Number

1042577-01-A

Connector

SUMITOMO 6098-3870

Color

BK

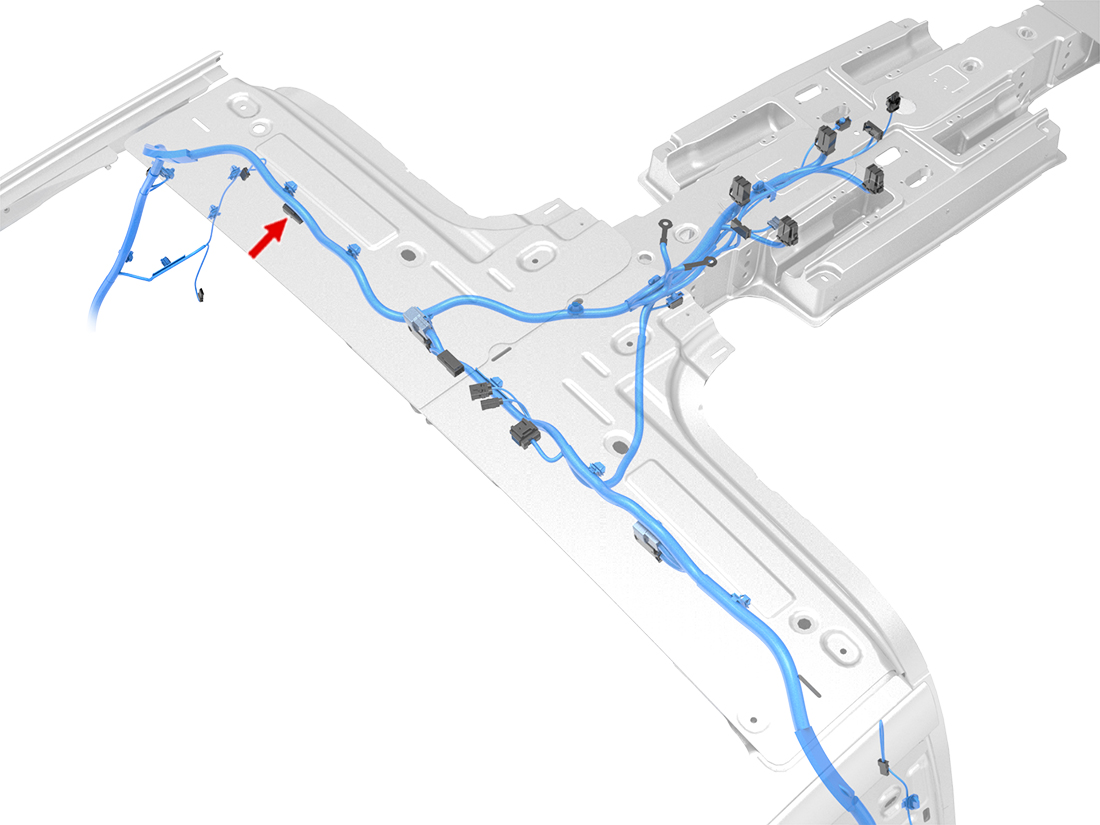

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3622	0.64x0.64M	VT	0.35			X070	2
2	SUMITOMO	8100-3622	0.64x0.64M	RD/BK	0.35			X071	28
3
4
5	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			GND_JC_C	6
6	SUMITOMO	8100-3622	0.64x0.64M	RD/BU	0.35			X926M	17
7	SUMITOMO	8100-3622	0.64x0.64M	GN	0.35			X924M	25
8
9	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			GND_JC_C	1
10	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			GND_JC_C	5
