X033B

Tesla Part Number

1506908-01-A

Connector

SUMITOMO 6098-8956

Color

WH

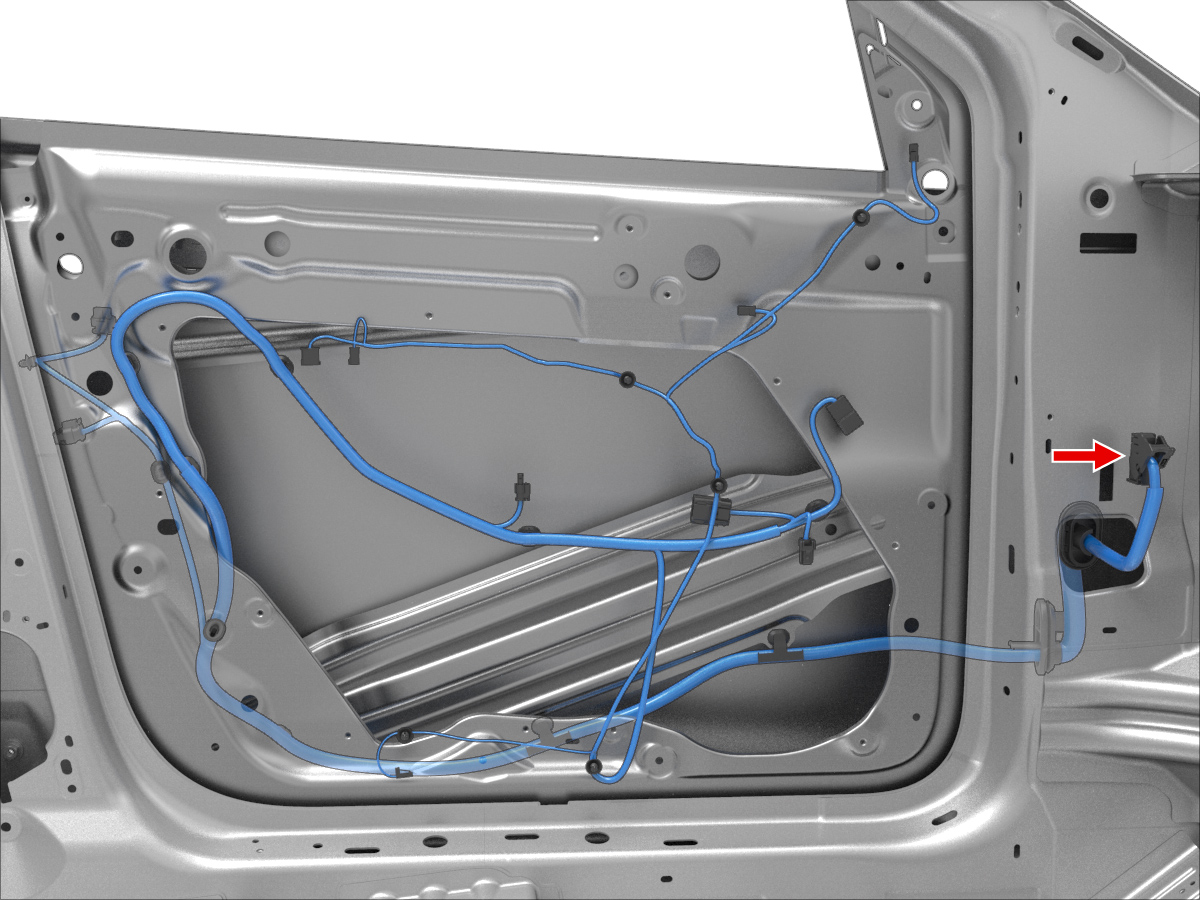

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X376	1
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X376A	14
3	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X380	3
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X376A	11
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X376A	13
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X380	4
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X370	1
