X038

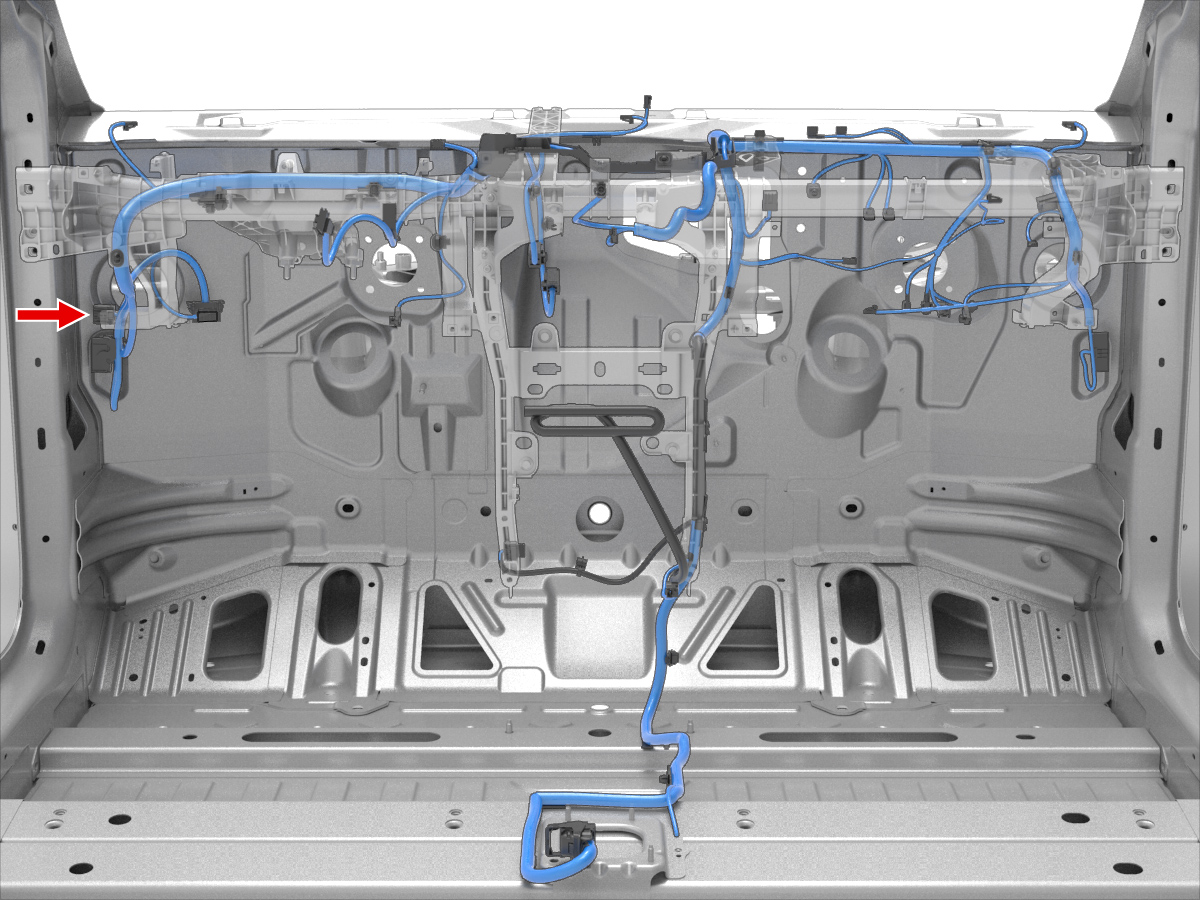

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4124-02 | 6.3x0.8F | RD | 5.00 | X536 | 4 | ||
| 2 | YAZAKI | 7116-4124-02 | 6.3x0.8F | BK | 5.00 | X536 | 2 | ||
| 3 | YAZAKI | 7116-4120-02 | 6.3x0.8F | SI | 0.50 | ||||
| 4 | YAZAKI | 7116-4124-02 | 6.3x0.8F | WH | 5.00 | X536 | 1 |
