X050B

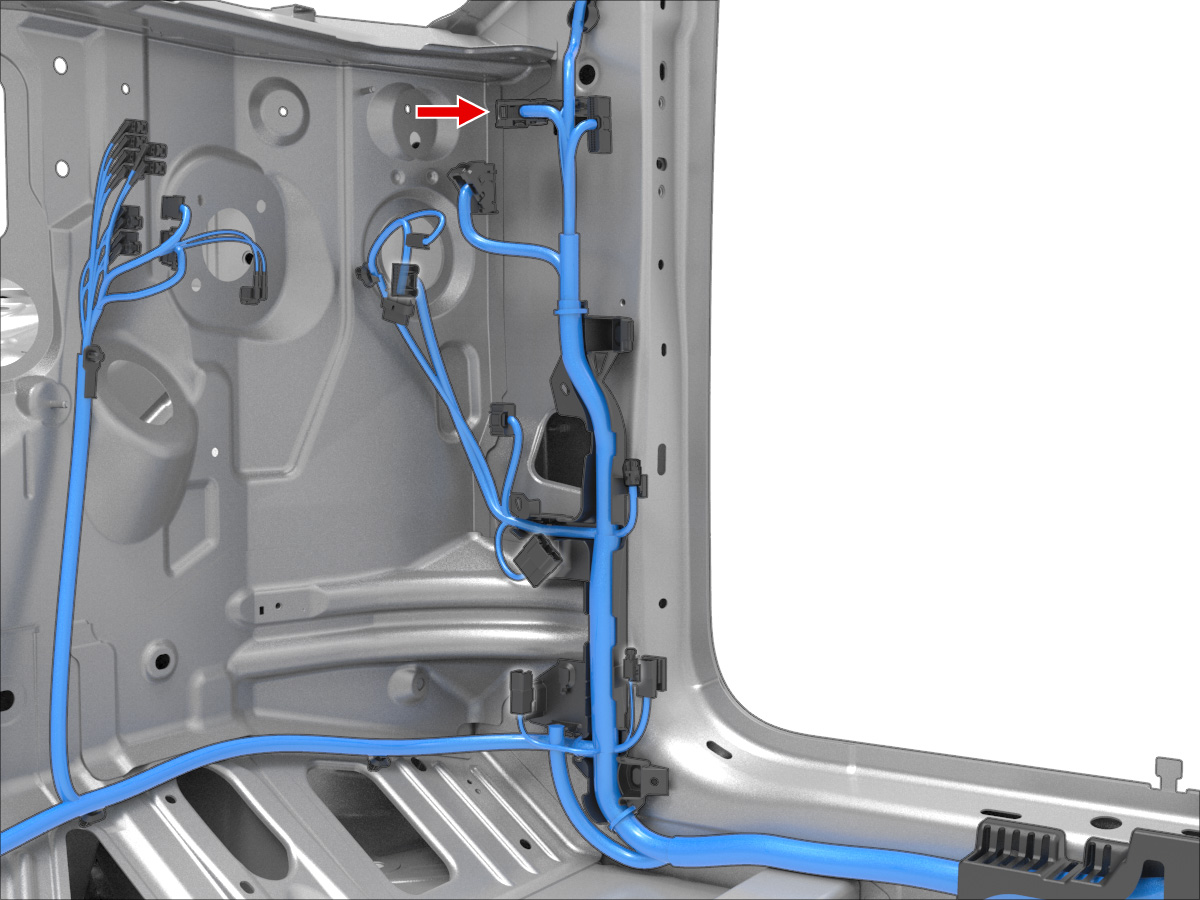

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.50 | X926M | 10 | ||
| 2 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 1.00 | X953M | 14 | ||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X953M | 10 | ||
| 4 | SUMITOMO | 8240-0213 | 1.5x0.64F | YE | 0.75 | X098 | 8 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X926M | 9 | ||
| 6 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X953M | 15 | ||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X272 | 3 | ||
| 9 | unused | ||||||||
| 10 | SUMITOMO | 8240-0215 | 1.5x0.64F | YE | 0.35 | X494 | 1 | ||
| 11 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3.00 | X561 | 6 | ||
