X051

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

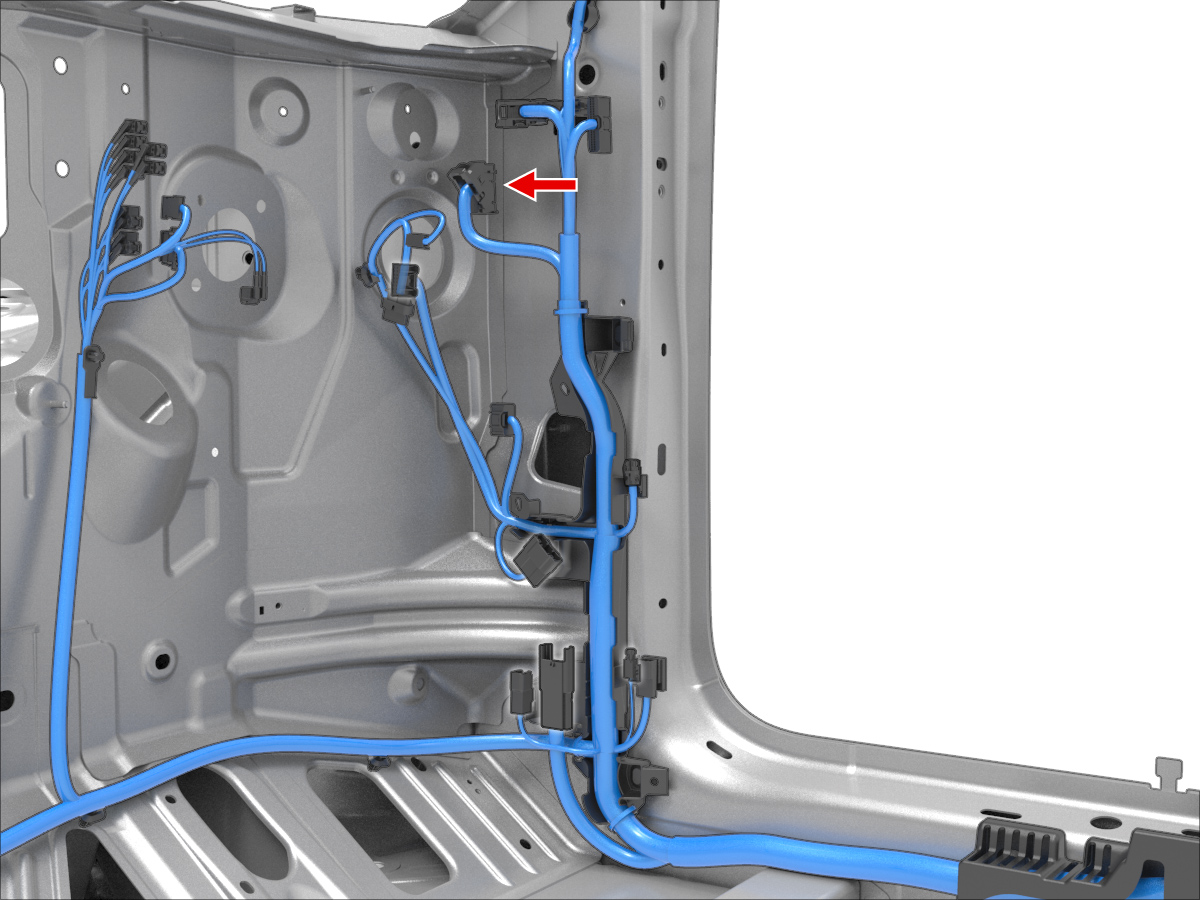

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	VT	1.50			X926M	2
2	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X926M	1
3	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X952M	10
4	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X163	1
5	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			X163	2
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X926M	3
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X962M	7
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	22
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	2
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X486	3
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926M	17
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X962M	8
13	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X179	2
14	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X935M	30
15	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X171	1
16	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X171	2
17	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X942F	1
18	unused
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X171	6
20	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X561	2
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X926M	14
22	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X926M	4
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X954M	21
24	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X954M	1
25	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X926M	7
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X962M	1
27	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X926M	15
28	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X962M	5
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X179	3
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935M	31
31	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X175	10
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X175	9
33	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X175	13
34	SUMITOMO	8240-0215	1.5x0.64F	TN	0.50			X175	14
35	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X171	5
36	SUMITOMO	8240-0214	1.5x0.64F	TN	2.00			X561	1
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X908M	16
38	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X954M	12
39	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X962M	10
40	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X942F	11
41	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X954M	18
42	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X098	12
43	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X908M	13
44	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X949M	8
45	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X949M	1
