X053B

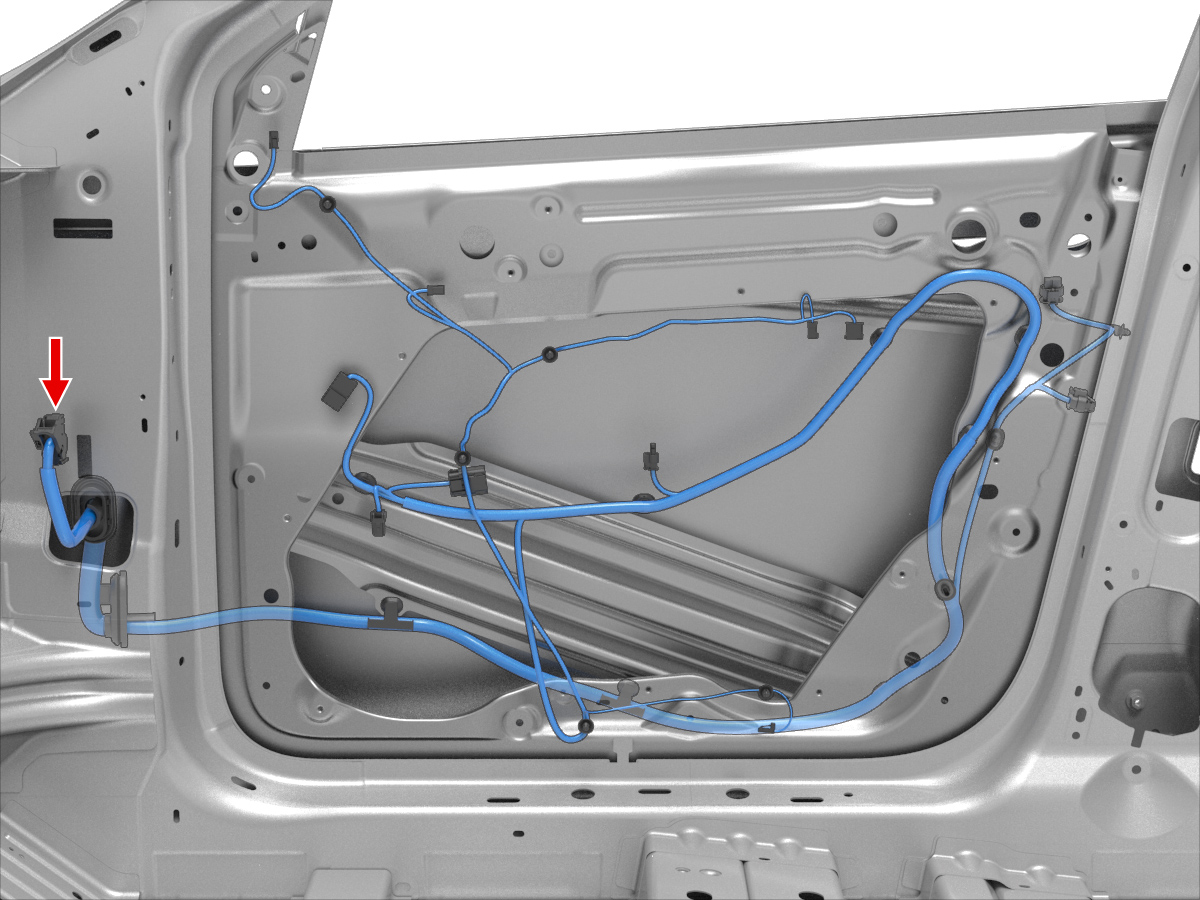

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X406 | 5 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X406A | 12 | ||
| 3 | unused | ||||||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X400 | 1 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X401 | 1 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X403 | 4 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | X410 | 4 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.50 | X410 | 3 | ||
