X096

Tesla Part Number
1117245-00-A
Connector
AMP 1452349-1
Color
WH

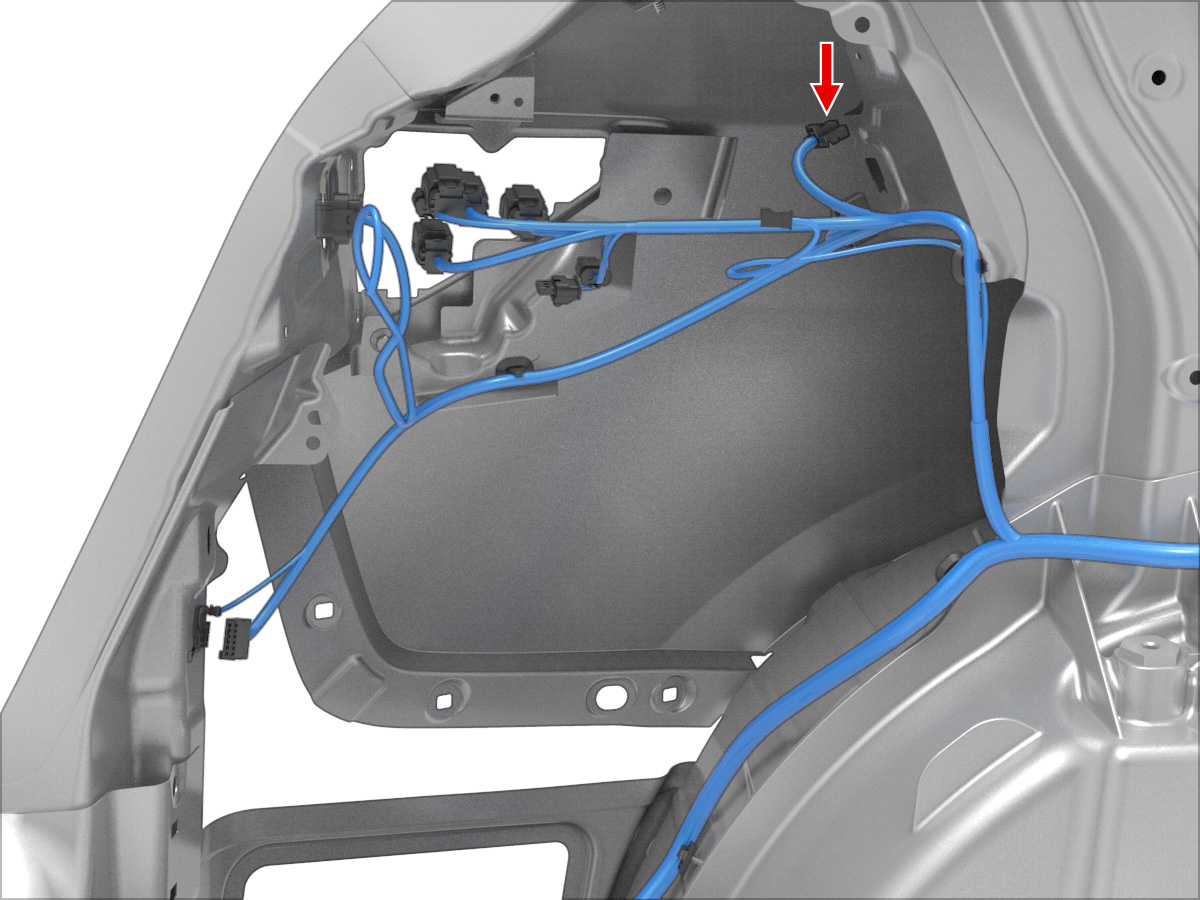

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3unused
4unused
5AMP5-928999-10.63x0.63FRD0.35X935F52
6AMP5-928999-10.63x0.63FBU0.35X935F53
7AMP5-928999-10.63x0.63FWH0.35X935F28
8AMP5-928999-10.63x0.63FYE0.35X935F29
9AMP5-928999-10.63x0.63FBK0.35G0414
10AMP5-928999-10.63x0.63FTN0.35X030A28
