X102

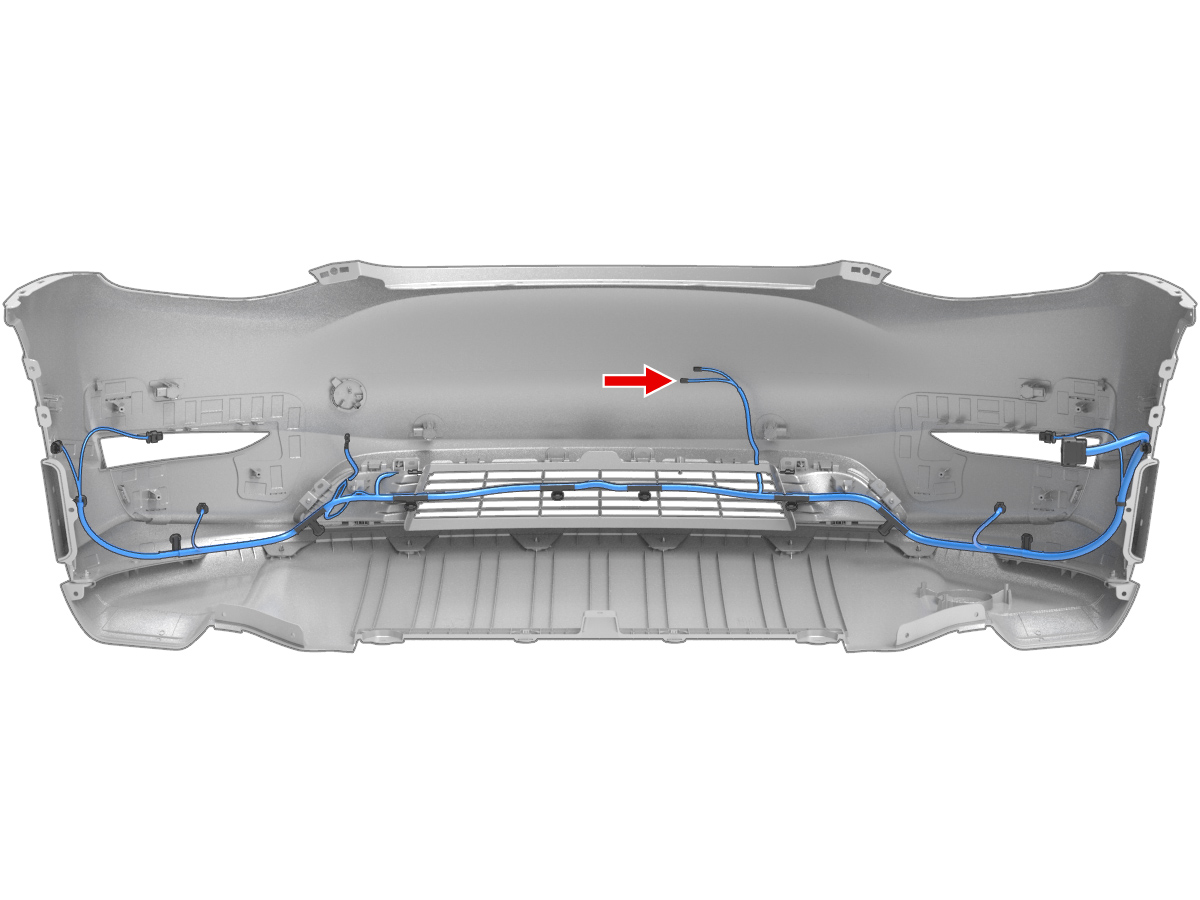

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3002 | 1.5x0.8F | WH | 1.00 | TESLA | MAT-120-240 | X901F | 8 |
| 2 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 1.00 | TESLA | MAT-120-240 |
