X120A

Tesla Part Number

1042614-02-A

Connector

SUMITOMO 6098-5611

Color

BU

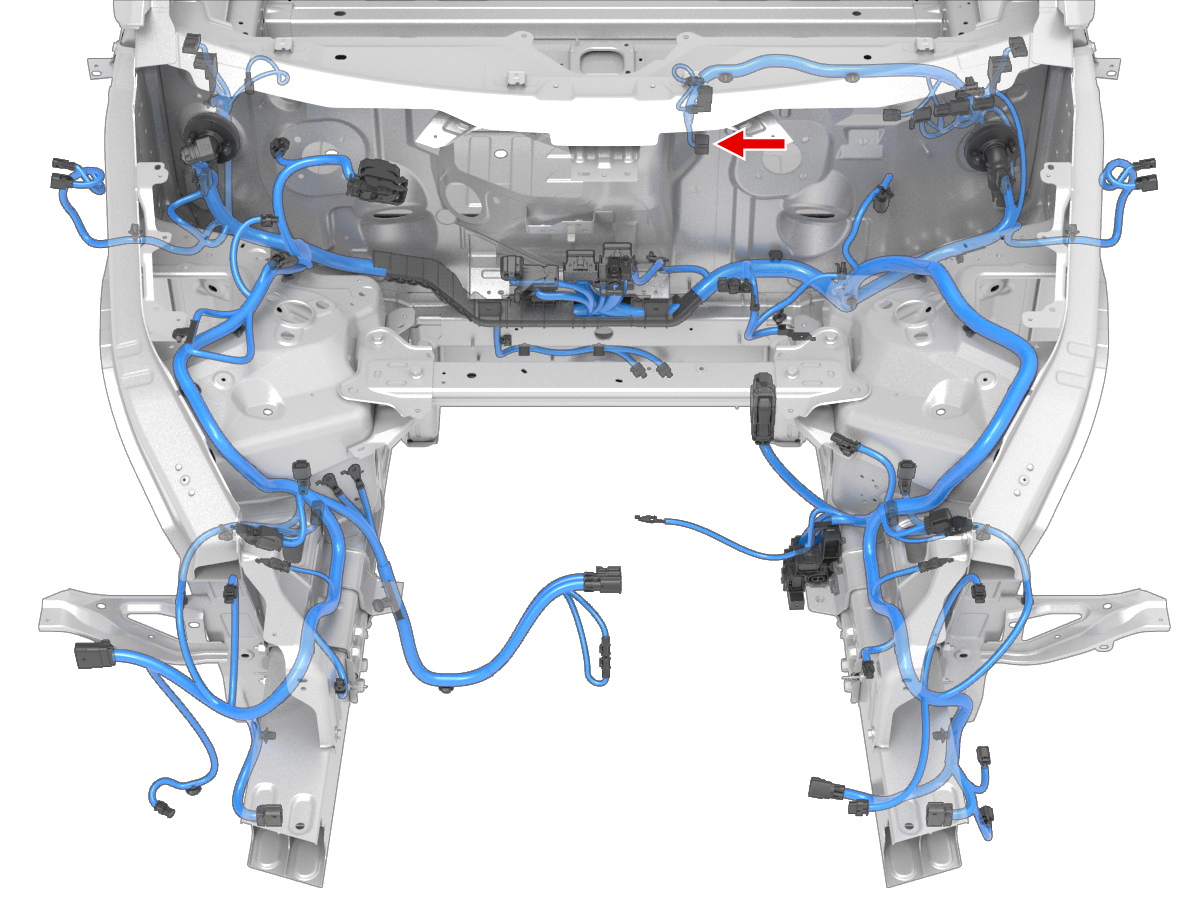

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X603A	1
2	unused
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X010	12
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	27
7	unused
8	unused
9	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X012	2
10	unused
11	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X603A	2
12	unused
13	unused
14	unused
15	unused
16	unused
17	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G012	12
18	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G012	11
