X129A

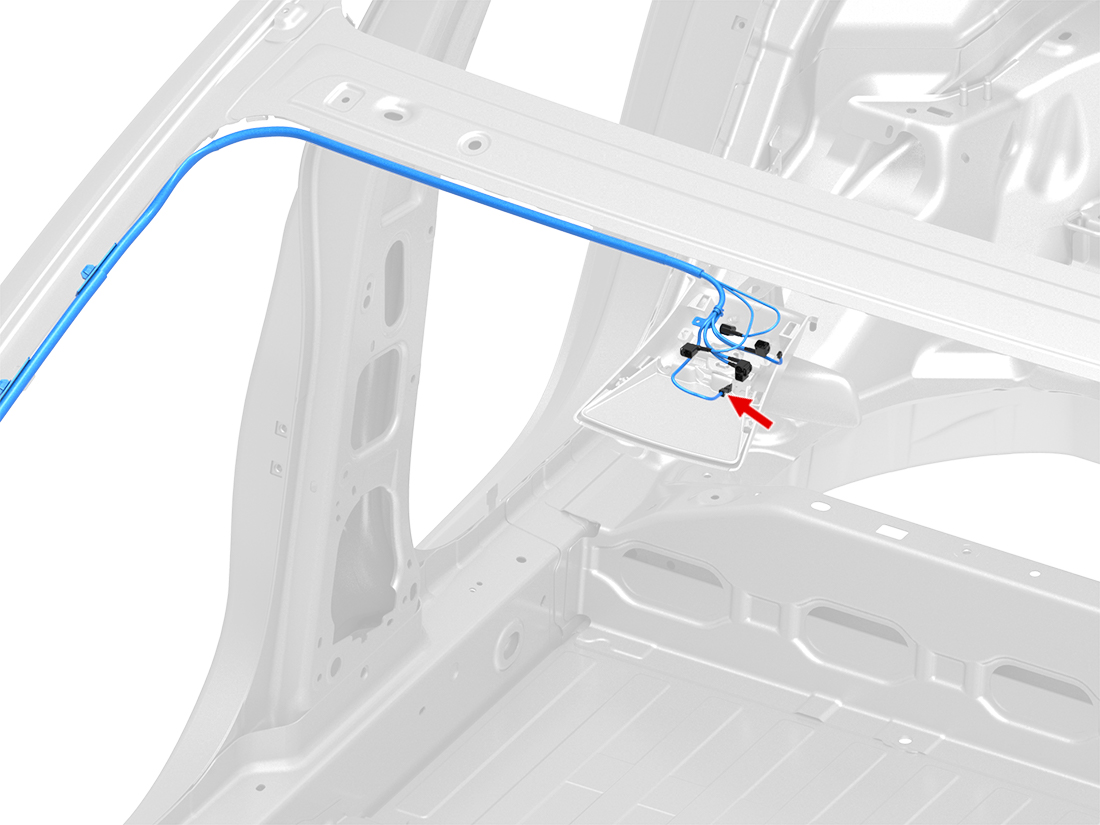

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JST | SPND-001T-C0.5 | 0.5 | BU | 0.35 | X962F | 5 | ||
| 2 | JST | SPND-001T-C0.5 | 0.5 | VT | 0.35 | X962F | 10 | ||
| 3 | unused | ||||||||
