X171A

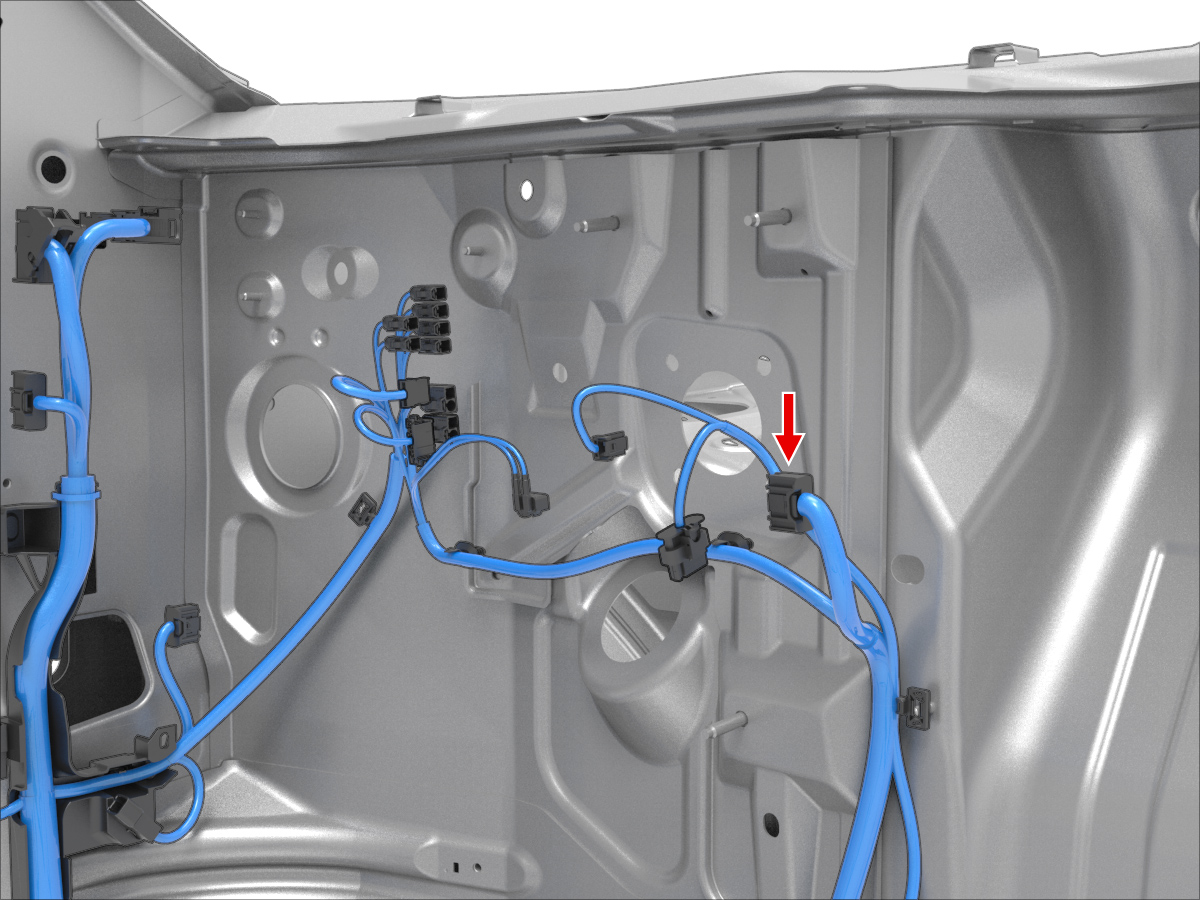

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 2.00 | X051 | 15 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 2.00 | X051 | 16 | ||
| 3 | SUMITOMO | 8240-0213 | 1.5x0.64F | WH | 1.00 | X935M | 1 | ||
| 4 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 1.00 | X935M | 2 | ||
| 5 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X051 | 36 | ||
| 6 | SUMITOMO | 8240-0213 | 1.5x0.64F | TN | 1.00 | X051 | 20 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X935M | 8 | ||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.50 | X926M | 25 | ||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | X908M | 15 | ||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | X908M | 1 | ||
