X173

Tesla Part Number
1666680-00-A
Connector
AMPHENOL 10142348-007LF
Color
BK

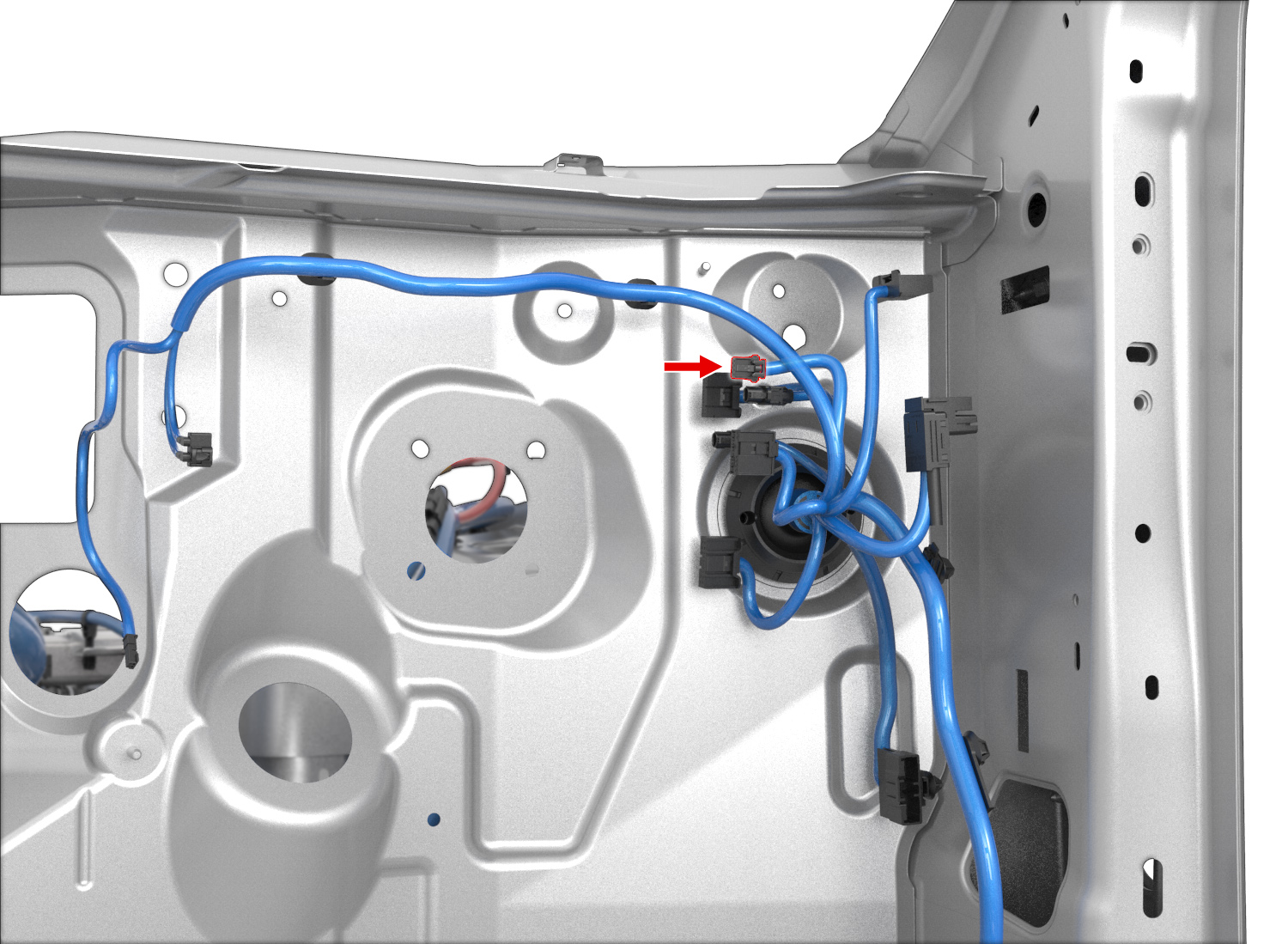

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10141272-111 LF0.50FVT0.35X1852
2AMPHENOL10141272-111 LF0.50FYE0.35X1851
3unused
4AMPHENOL10141272-111 LF0.50FRD0.35X908F13
5AMPHENOL10141272-111 LF0.50FWH0.35X1854
6AMPHENOL10141272-111 LF0.50FBU0.35X1853
7AMPHENOL10141272-111 LF0.50FYE0.35X908F16
