X180

Tesla Part Number
1459574-00-A
Connector
KOSTAL 22400736187
Color
YL

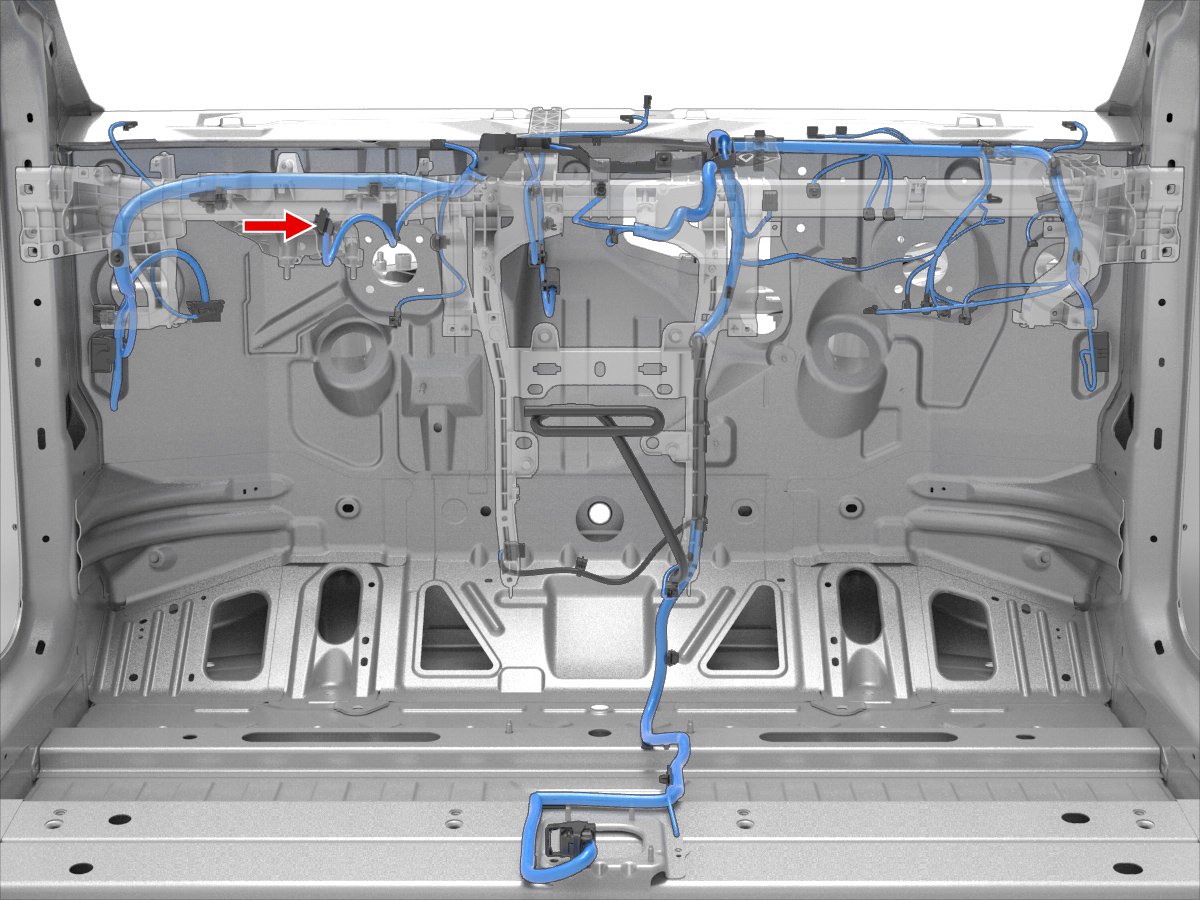

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1KOSTAL321247340131.2x0.6FGY0.35X03544
2KOSTAL321247340131.2x0.6FBN/WH0.35X03513
3KOSTAL321247340131.2x0.6FBN0.35X03512
4KOSTAL321247340331.2x0.6FBK0.75
5unused
6KOSTAL321247340331.2x0.6FBK0.75
7KOSTAL321247340331.2x0.6FVT0.75X0355
8KOSTAL321247340131.2x0.6FTN0.35X20017
9KOSTAL321247340131.2x0.6FBK0.35X20016
10KOSTAL321247340131.2x0.6FRD0.35X20021
11KOSTAL321247340131.2x0.6FGN0.35X20020
12KOSTAL321247340131.2x0.6FYE0.35X2009
13KOSTAL321247340131.2x0.6FGY0.35X20010
