X191A

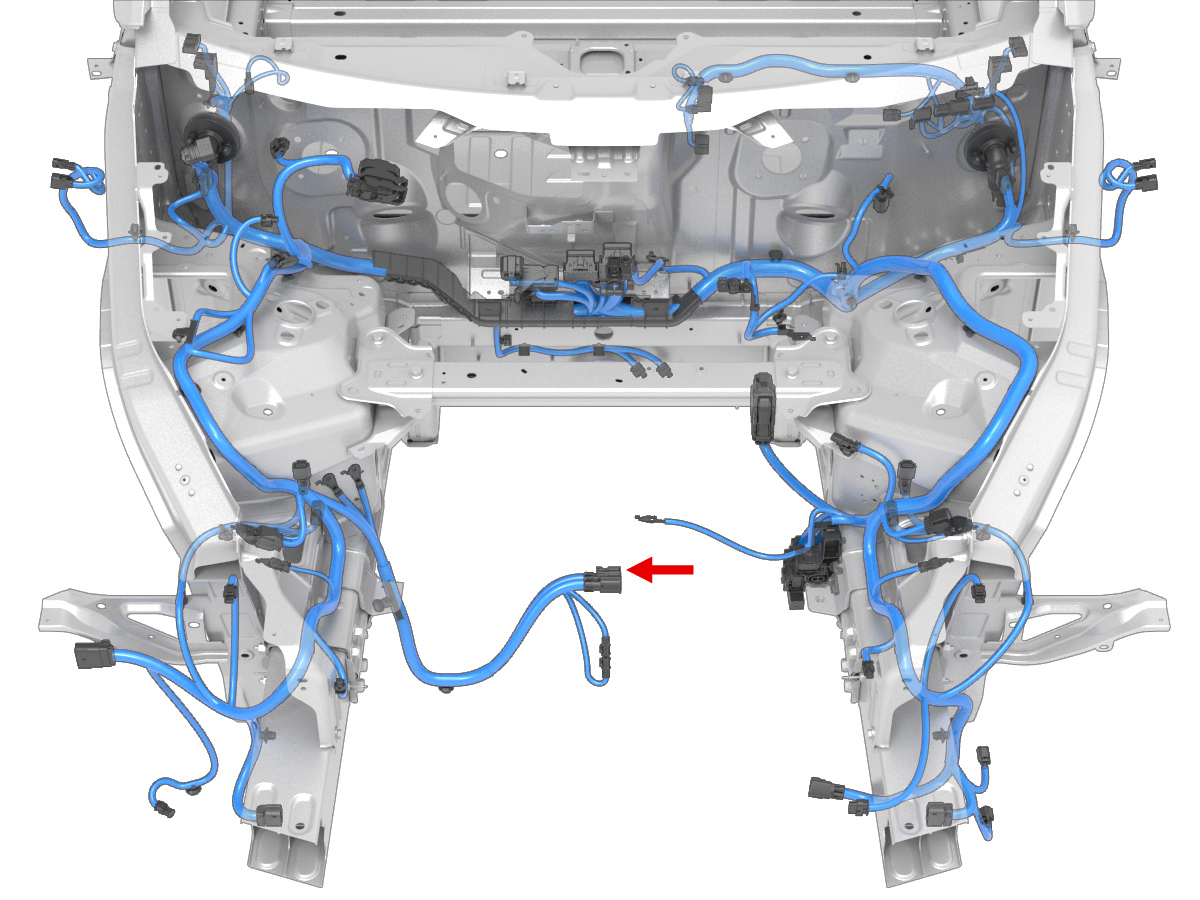

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | WH | 13 | YAZAKI | 7158-3713-70 | X015 | 2 |
| 2 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BK | 13 | YAZAKI | 7158-3713-70 | G099A | 1 |
