X192A

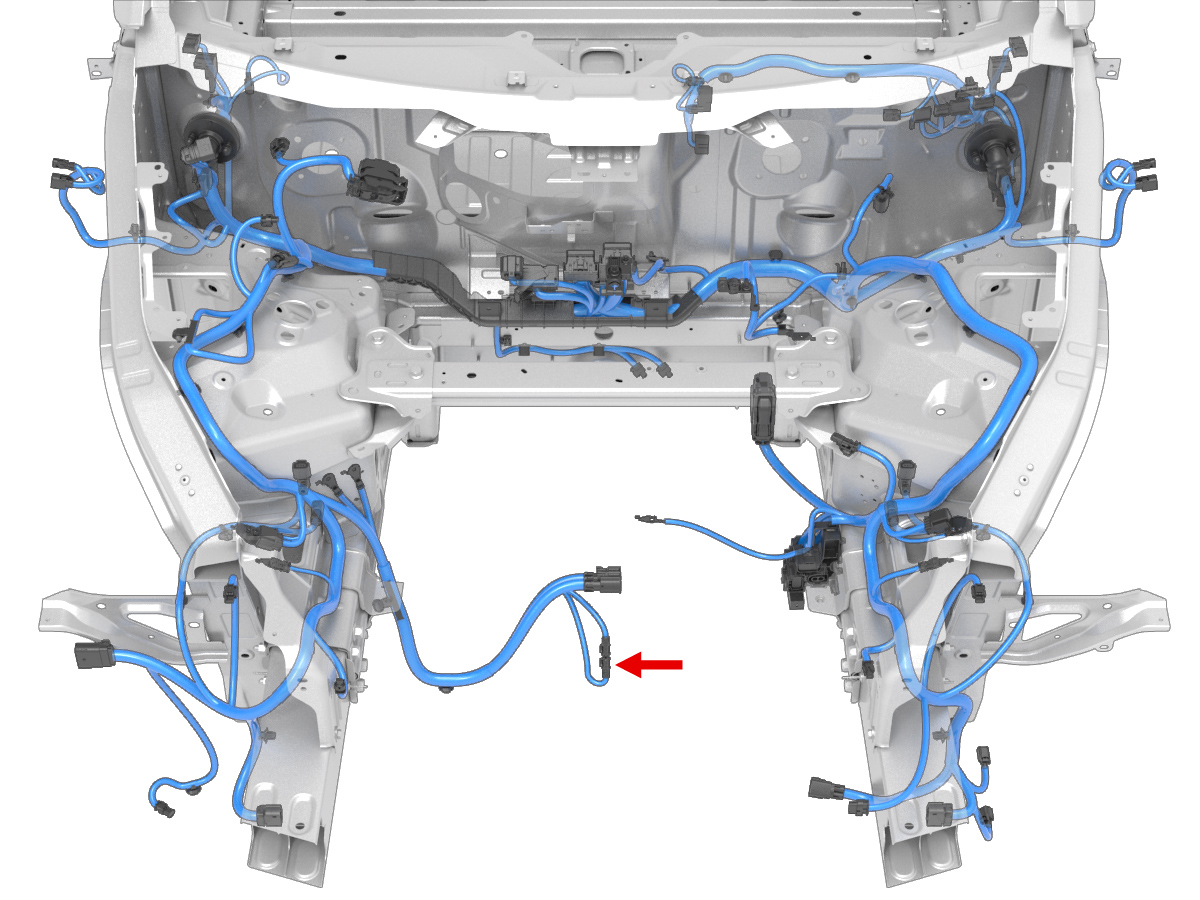

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | WH | 0.35 | AMP | 967067-2 | X010 | 16 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | YE/LTBU | 0.35 | AMP | 967067-2 | X010 | 40 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X010 | 41 |
