X198

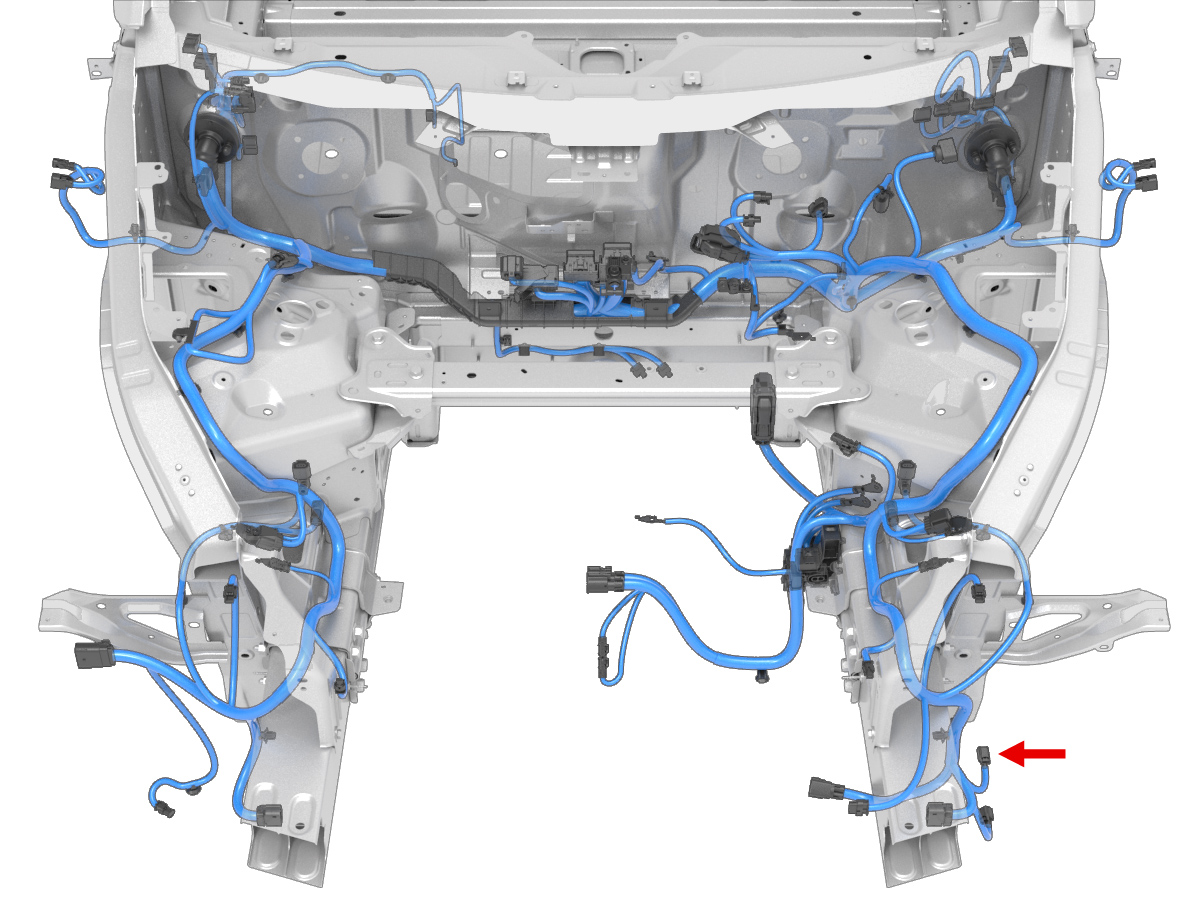

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4103-02 | 1.5x0.8FS | RD | 1.00 | YAZAKI | 7158-3031-90 | X010 | 95 |
| 2 | YAZAKI | 7116-4103-02 | 1.5x0.8FS | BK | 1.00 | YAZAKI | 7158-3031-90 | G011 | 5 |
