X221

Tesla Part Number
1610782-02-B
Connector
DELPHI 35354176
Color
YE

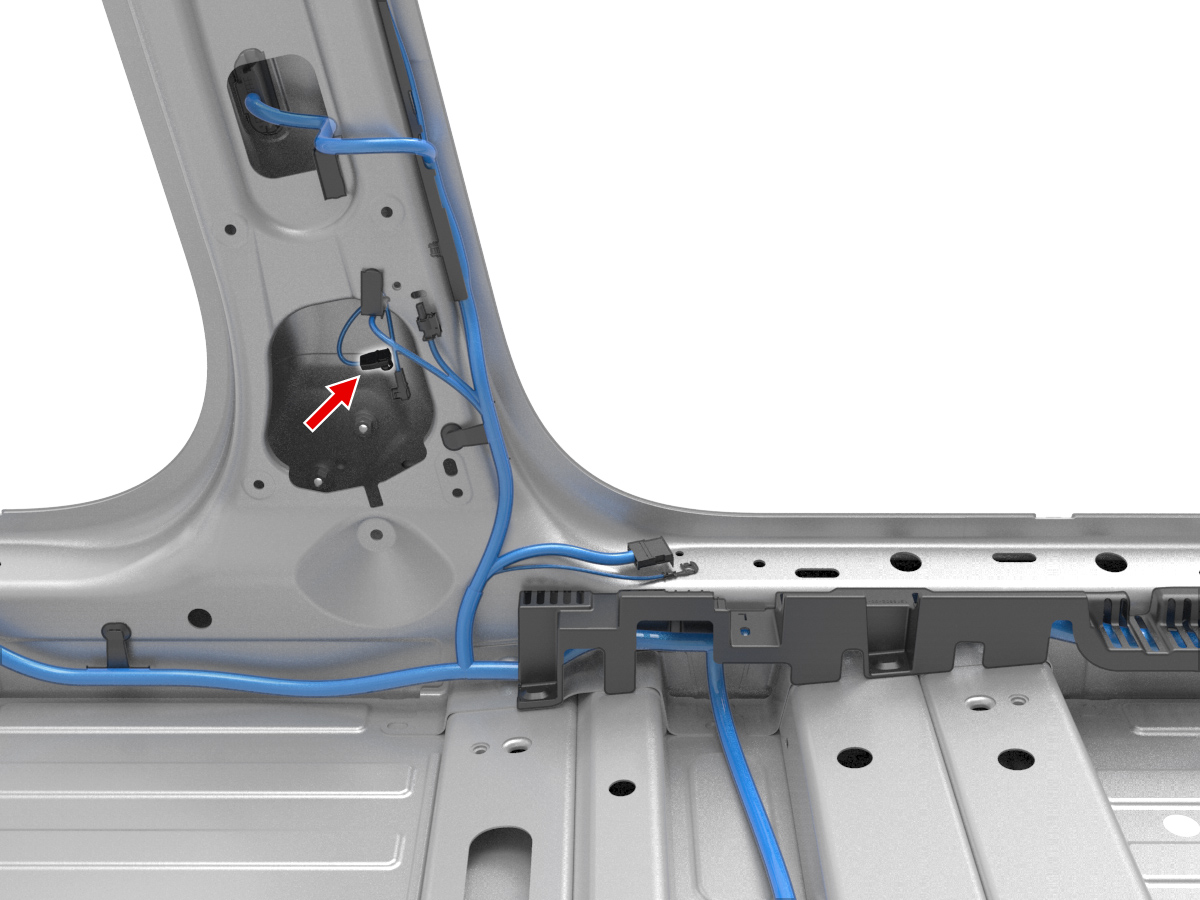

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SGN0.35X935F14
2GENPIA-SRS-SVT0.35X935F15
