X222

Tesla Part Number
1610782-01-B
Connector
DELPHI 35354172
Color
GN

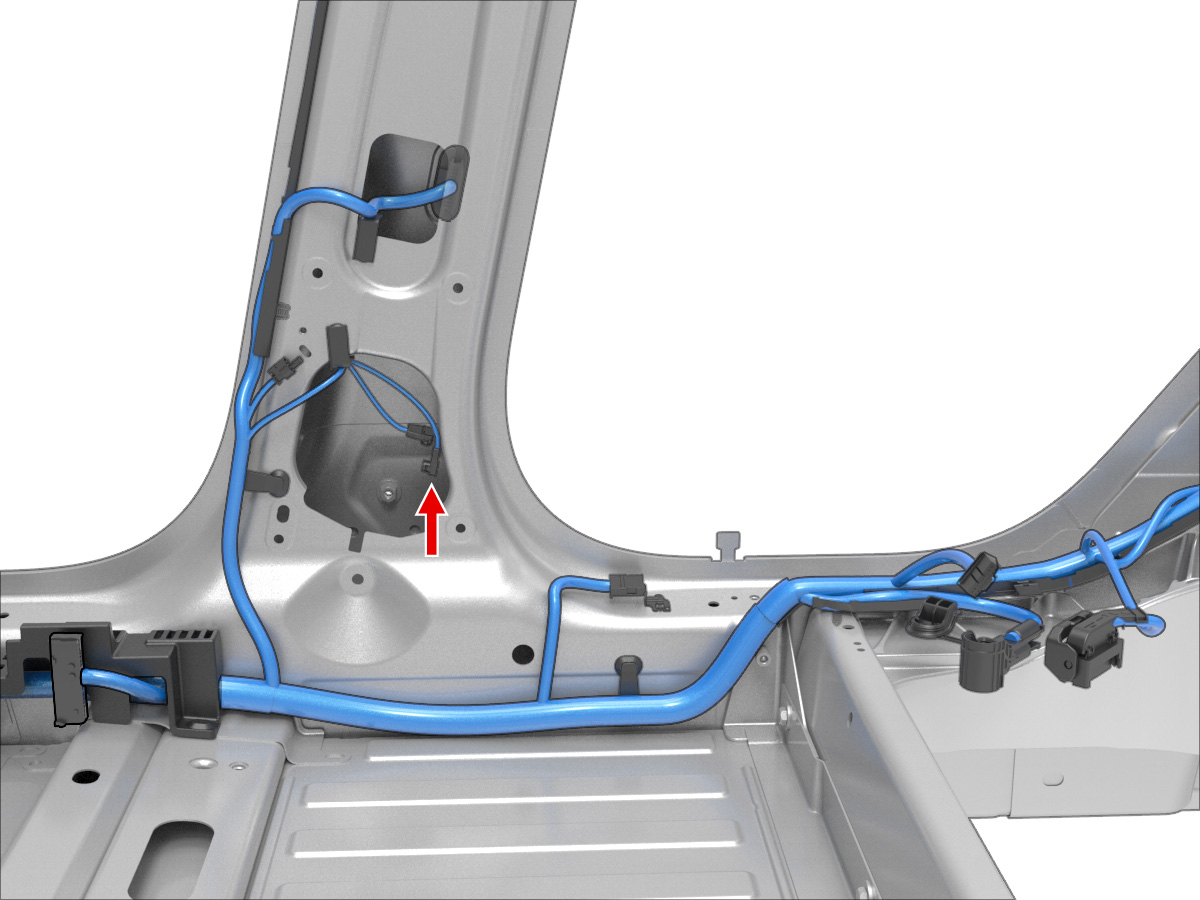

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SGN0.35X2011
2GENPIA-SRS-SWH0.35X2012
