X320

Tesla Part Number

1064878-00-A

Connector

DELPHI 13678638

Color

BK

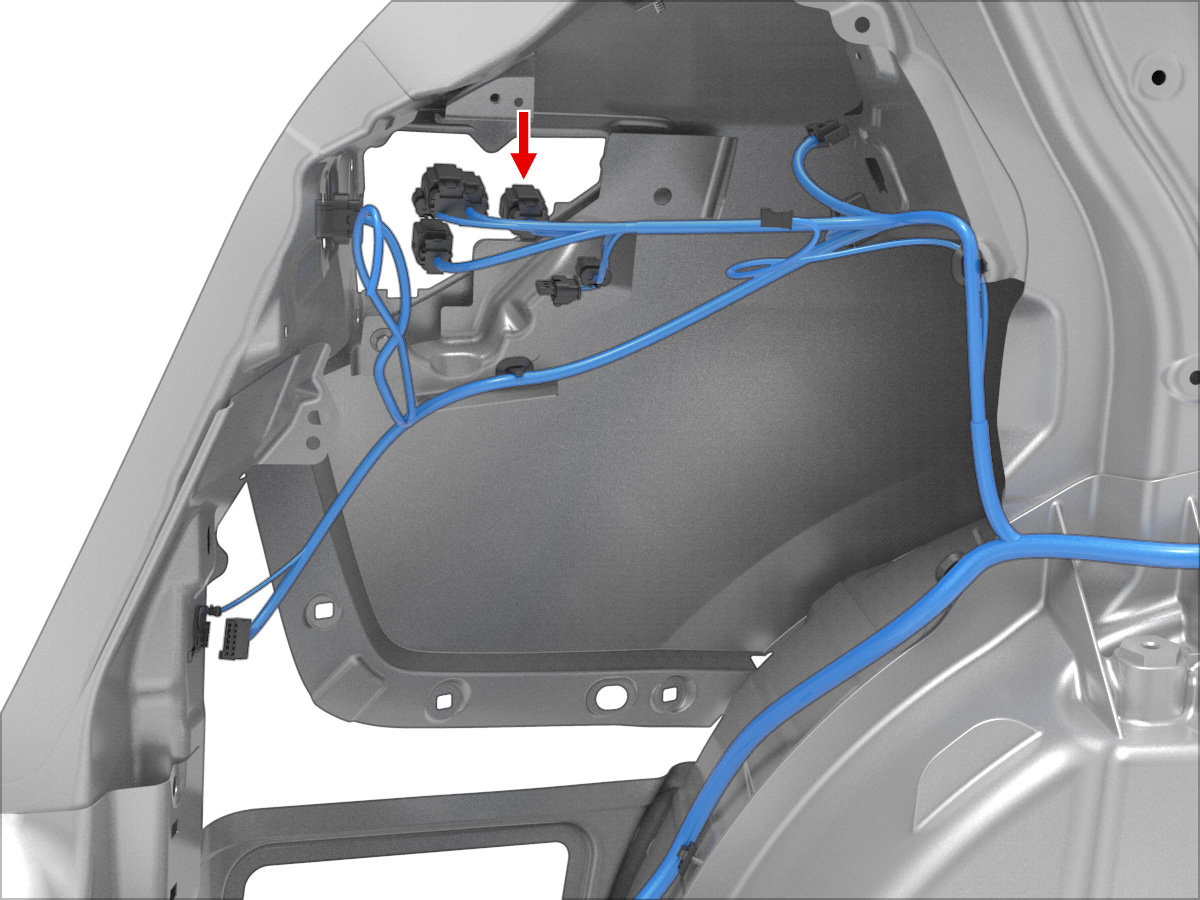

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X688	4
2	DELPHI	35072403	1.2x0.6F	RD	0.50	TESLA	MAT-140-190	X688	1
3	unused
4	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-140-190	X688	20
