X422

Tesla Part Number
1100029-00-A
Connector
AMP 1-936119-2
Color
YL

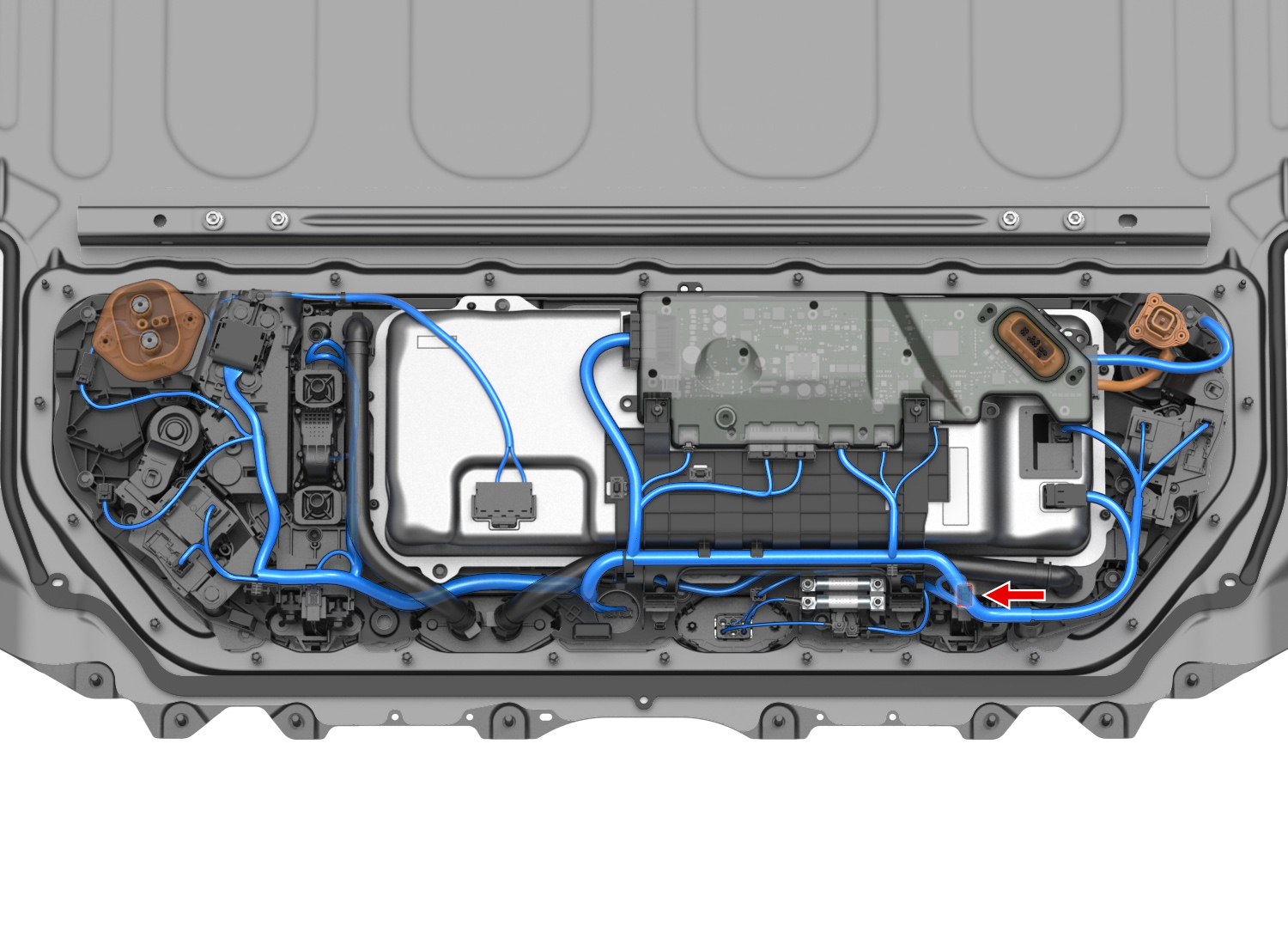

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2AMP5-928999-10.63x0.63FWH0.35X47924
3AMP5-928999-10.63x0.63FWH0.35X4212
4unused
