X457

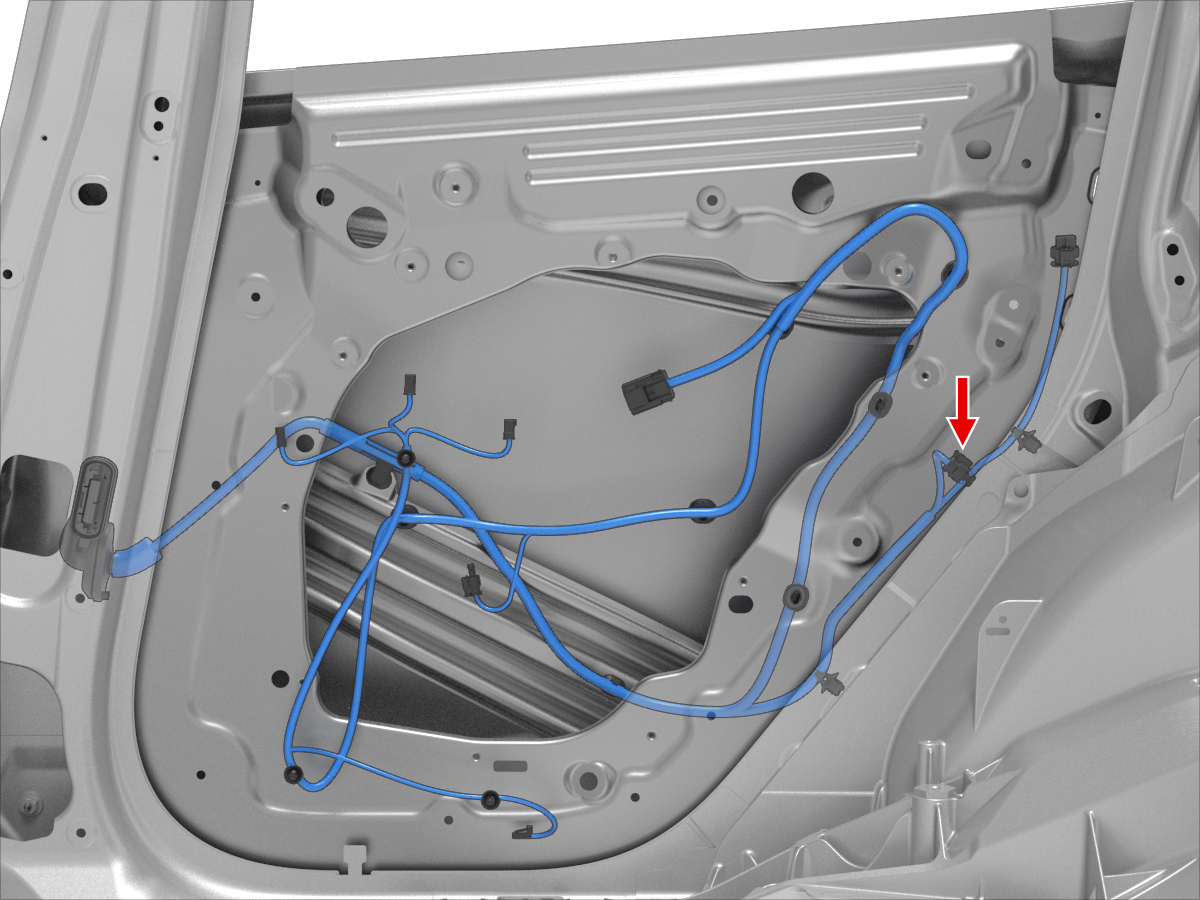

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | AMP | 967067-2 | X926F | 8 |
| 2 | unused | ||||||||
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | GY | 0.50 | AMP | 967067-1 | X926F | 10 |
| 4 | AMP | 7-1452668-1 | 1.2x0.6FS | WH | 0.50 | AMP | 967067-1 | X926F | 9 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | ||
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X466 | 2 |
