X469

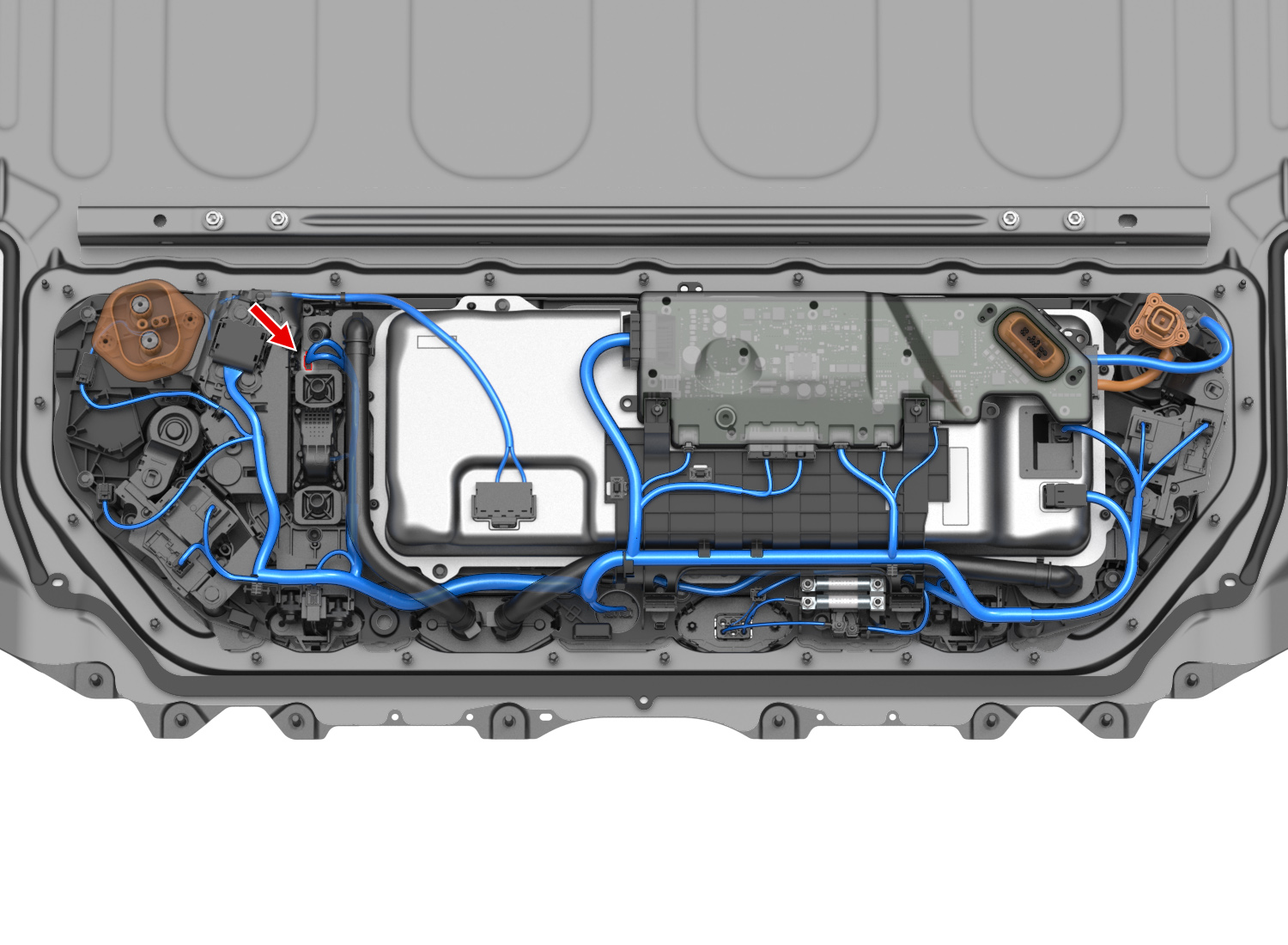

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 3 | ||
| 2 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 1 | ||
| 3 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 4 | ||
| 4 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 5 | ||
| 5 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 6 | ||
| 6 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 7 | ||
| 7 | MOLEX | 5051538000 | 0.5 | WH | 0.35 | X480 | 8 |
