X475

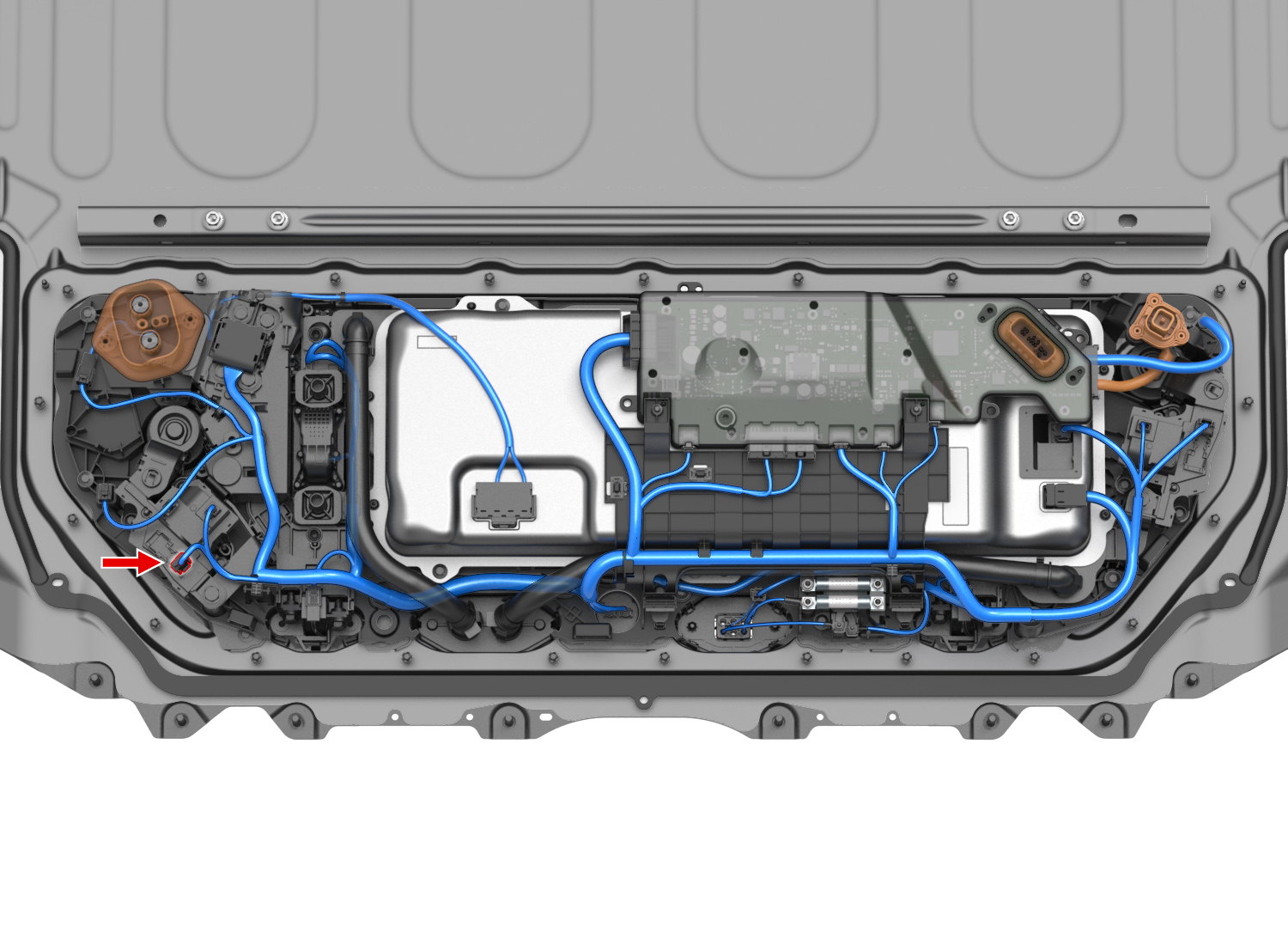

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173630-1 | 1.8x0.64F | WH | 0.35 | X481 | 7 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | AMP | 173630-1 | 1.8x0.64F | WH | 0.35 | X481 | 1 | ||
